L42MBT-24MBSPP ED STRAIGHT

Description & Features

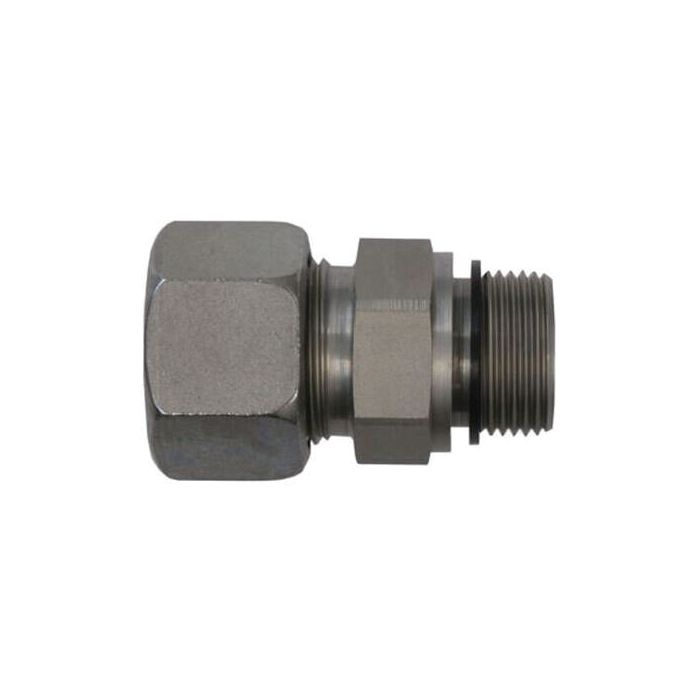

This straight steel fitting, L42MBT-24MBSPP ED STRAIGHT, features a DIN Metric Tube Compression connection for a 42mm tube OD and M52X2.0 thread.

It also includes a Male BSPP Form E Captive Seal with 1-1/2-11 thread size and 36.0mm thread ID. Suitable for applications requiring a maximum dynamic pressure of 250 bar.

SKU: D7400-L42-24-ED

Supplier Part Number (MPN): D7400-L42-24-ED

Specifications

Brand BRENNAN	Additional Information Light-Duty	Connection Size 1 4 mm	Connection Size 2 1-1/2 in	Connection Type Male BSP, Metric	Connection Type 1 DIN Tube	Connection Type 2 Male BSPP Elastomeric Seal	Dimension Standards BS 5200, DIN 3852-11, DIN 2353, ISO 1179-4, ISO 8434-1, ISO 8434-6	Dimensions 64 mm L	Finish Nickel/Zinc-Plated	Fitting Type Tube End Fitting	Hex Size 55 mm	Material Steel	Material Construction 11SMnPb30 Steel	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series D7400-ED Series	Thread Size M52x2 x G1-1/2-11

Product Questions & Answers (1)

Question by: Wes O on Apr 7, 2026, 9:50 PM

So, this is a straight fitting, right? Just making sure it's not angled or anything.

Answer by: Customer Support on Apr 9, 2026, 6:38 PM

Correct, this is a straight steel fitting.
