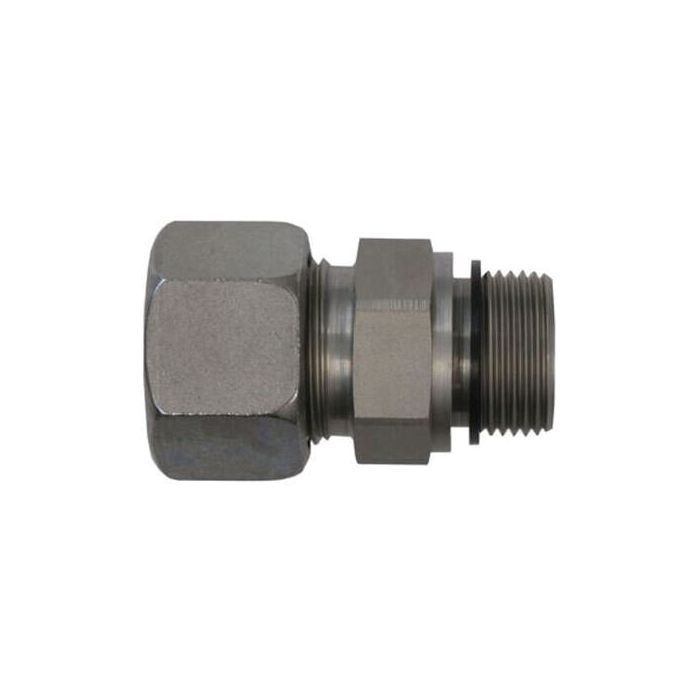

S14MBT-08MBSPP ED STRAIGHT

Ask A Question

Description & Features

Manufactured by Brennan Industries, this straight hydraulic adapter is designed for inline connections in hydraulic and fluid power systems. The S14MBT-08MBSPP ED STRAIGHT features a straight configuration suited to applications where direct port-to-port connections are required without angular offset.

With an S14 series designation and 08 sizing, this fitting is built to Brennan Industries' engineering standards for consistent thread form and dimensional accuracy. The ED designation indicates an electroless nickel or similar protective finish, offering corrosion resistance in demanding service environments.

SKU: D7400-S14-08-ED

Supplier Part Number (MPN): D7400-S14-08-ED

Specifications

Brand
BRENNAN
Additional Information
Heavy-Duty
Connection Size 1
14 mm
Connection Size 2
1/2 in
Connection Type
Male BSP, Metric
Connection Type 1
DIN Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
DIN 3852-11, DIN 2353
Finish
Nickel/Zinc-Plated
Fitting Type
Tube End Fitting
Hex Size
27 mm
Material
Steel
Material Construction
11SMnPb30 Steel
Operating Temperature
-40 to 250 deg F
Series
D7400-ED Series
Thread Size
M22x1.5 x G1/2-14

Product Questions & Answers (1)

Question by: Cody R on Jul 30, 2025, 7:14 AM
Will this work with a standard BSPP port, or do I need an adapter?
Answer by: Customer Support on Jul 31, 2025, 12:09 PM
This ED straight is designed to mate directly with standard BSPP (British Standard Parallel Pipe) ports, so you shouldn't need an adapter unless you're connecting to a different type of fitting.
