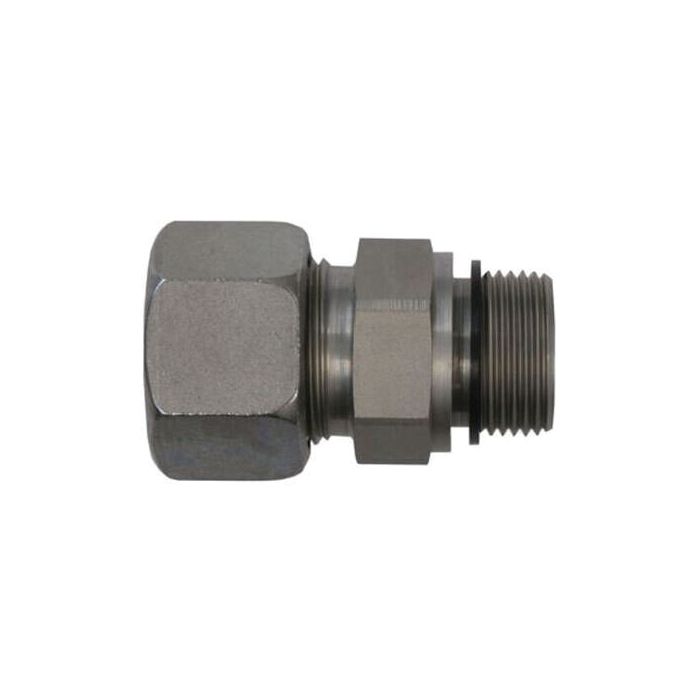

main product photo

S16MBT-08MBSPP ED STRAIGHT

Ask A Question

Description & Features

Manufactured by Brennan Industries, this straight hydraulic fitting is designed for use in medium- to high-pressure fluid power systems requiring a reliable male-to-male connection. The S16MBT-08MBSPP ED STRAIGHT combines a 1-inch male British Taper (MBSPT) thread on one end with a 1/2-inch male SAE straight pipe (MBSPP) thread on the other, making it well-suited for connecting components with differing thread standards in a single inline configuration.

The straight body orientation keeps the flow path direct, minimizing pressure drop across the fitting. As an ED (plated or treated) variant, it offers additional surface protection suited for demanding industrial environments. This fitting is a practical solution where thread conversion between BSP taper and SAE straight pipe standards is required in hydraulic circuits or fluid transmission assemblies.

SKU: D7400-S16-08-ED

Supplier Part Number (MPN): D7400-S16-08-ED

Specifications

Brand
BRENNAN
Additional Information
Heavy-Duty
Connection Size 1
S16
Connection Size 2
1/2 in
Connection Type
Male BSP, Metric
Connection Type 1
DIN Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
DIN 3852-11, DIN 2353
Finish
Nickel/Zinc-Plated
Fitting Type
Tube End Fitting
Hex Size
27 mm
Material
Steel
Material Construction
11SMnPb30 Steel
Operating Temperature
-40 to 250 deg F
Series
D7400-ED Series
Thread Size
M24x1.5 x G1/2-14

Product Questions & Answers (1)

Question by: Rex M on Oct 16, 2025, 2:40 PM
Will this fitting work to connect a BSPT fitting to a BSPP fitting?
Answer by: Customer Support on Oct 18, 2025, 8:04 AM
Yes, this fitting combines a 1-inch male British Taper (MBSPT) thread on one end with a 1/2-inch male SAE straight pipe (MBSPP) thread on the other, so it will directly connect those two thread types.
