S16MBT-12MBSPP ED STRAIGHT

Description & Features

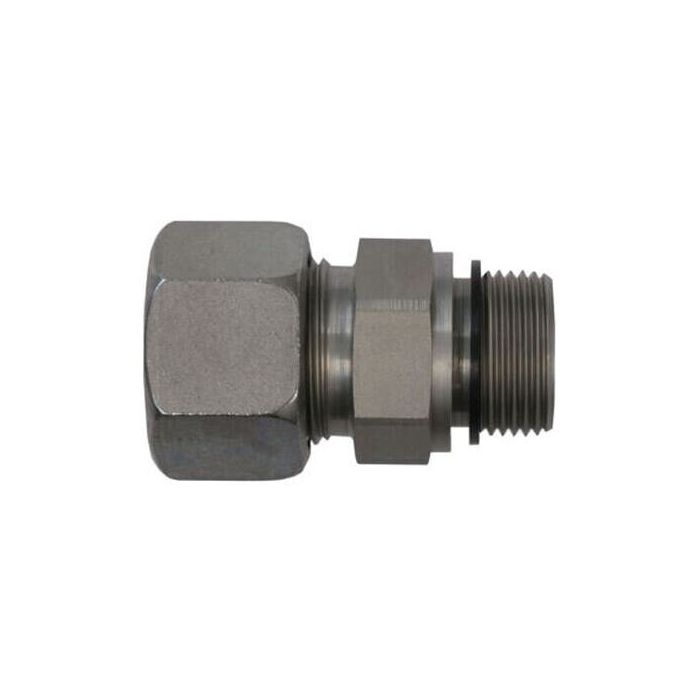

Engineered for precision and reliability, the S16MBT-12MBSPP ED STRAIGHT fitting is crafted from high-quality straight steel. It features a DIN metric tube compression connection for 16mm tube outer diameter on one side, adhering to DIN 2353 and ISO 8434-1 standards. The opposite end is equipped with a male BSPP Form E captive seal, compatible with ISO 1179, ISO 8434-6, and BS 5200 specifications, supporting a thread size of 3/4-14. This dual-connection design ensures versatile application in industrial hydraulic systems.

With a maximum dynamic pressure rating of 400 bar, this fitting is suitable for high-pressure environments. Its NBR O-ring seal material provides excellent resistance to oils and fuels, enhancing the product's durability. The compact design, with an overall length of 55.0 mm, makes it an ideal choice for space-constrained systems. Brennan Industries' commitment to quality ensures that this fitting meets the rigorous demands of industrial applications.

SKU: D7400-S16-12-ED

Supplier Part Number (MPN): D7400-S16-12-ED

Specifications

Brand BRENNAN	Additional Information Heavy-Duty	Connection Size 1 S16	Connection Size 2 3/4 in	Connection Type Male BSP, Metric	Connection Type 1 DIN Tube	Connection Type 2 Male BSPP Elastomeric Seal	Dimension Standards BS 5200, DIN 3852-11, DIN 2353, ISO 1179-4, ISO 8434-1, ISO 8434-6	Dimensions 55 mm L	Finish Nickel/Zinc-Plated	Fitting Type Tube End Fitting	Hex Size 32 mm	Material Steel	Material Construction 11SMnPb30 Steel	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series D7400-ED Series	Thread Size M24x1.5 x G3/4-14

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
D7400-S08-04-ED	8 mm	1/4 in	M16x1.5 x G1/4-19
D7400-S10-06-ED		3/8 in	M18x1.5 x 3/8-19
D7400-S12-06-ED	L12	3/8 in	M20x1.5 x G3/8-19
D7400-S14-08-ED	14 mm	1/2 in	M22x1.5 x G1/2-14
D7400-S16-08-ED	S16	1/2 in	M24x1.5 x G1/2-14
D7400-S20-12-ED	20 mm	3/4 in	M30x2 x G3/4-14
D7400-S25-12-ED	S25	3/4 in	M36x2 x G3/4-14
D7400-S25-16-ED	S25		M36x2 x G1-11
D7400-S30-20-ED	30 mm	1-1/4 in	M42x2 x G1-1/4-11
