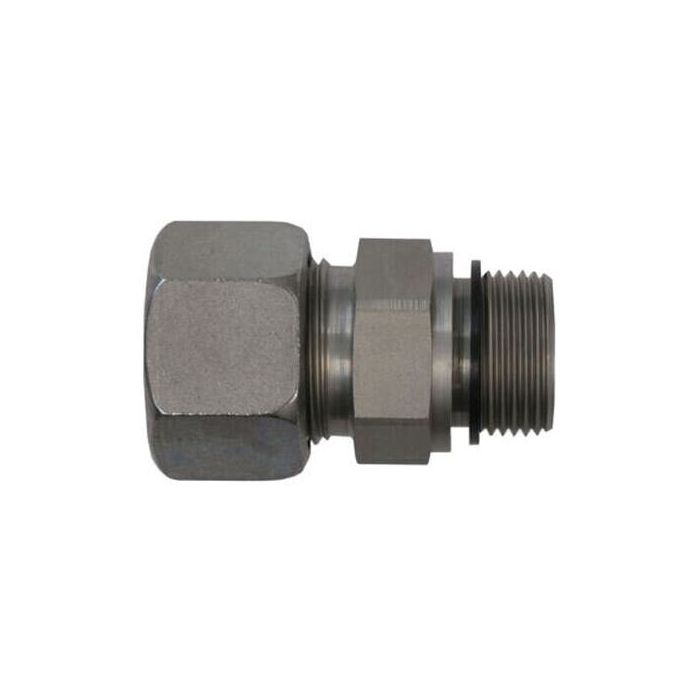

BRENNAN SS MBT X MBSPP

Description & Features

Designed for straight-run connections in high-pressure hydraulic systems, the Brennan SS MBT x MBSPP fitting combines a DIN metric tube compression end with a male BSPP Form E captive seal end in a single stainless steel body. The tube compression side conforms to DIN 2353 and ISO 8434-1, accepting heavy 20mm OD tube with an M30x2.0 thread, while the BSPP end meets ISO 1179, ISO 8434-6, and BS 5200, threading at 1/2-14 with a 12.0mm thread ID.

Constructed from straight stainless steel, this fitting is suited for corrosive or hygienic environments where carbon steel is not appropriate. The Viton® O-ring captive seal on the BSPP end provides reliable static sealing at a maximum dynamic pressure of 400 bar. Part of Brennan's D7400-ED series, the fitting measures 57.0mm in overall length with a 36mm hex, making it straightforward to install and torque with standard tooling. California residents should note the applicable Prop 65 warning.

SKU: D7400-S20-08-ED-SS

Supplier Part Number (MPN): D7400-S20-08-ED-SS

Specifications

Brand BRENNAN	Additional Information Heavy-Duty	Connection Size 1 20 mm	Connection Size 2 1/2 in	Connection Type Male BSP, Metric	Connection Type 1 DIN Tube	Connection Type 2 Male BSPP Elastomeric Seal	Dimension Standards BS 5200, DIN 3852-11, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6	Dimensions 57 mm L	Fitting Type Tube End Fitting	Hex Size 32 mm	Material Stainless Steel	Material Construction 316Ti Stainless Steel	Seam Material FKM	Series D7400-ED Series	Thread Size M30x2 x G1/2-14

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
D7400-S12-04-ED-SS	L12	1/4 in	M20x1.5 x G1/4-19
D7400-S12-08-ED-SS	L12	1/2 in	M20x1.5 x G1/2-14
D7400-S16-08-ED-SS	S16	1/2 in	M24x1.5 x G1/2-14
D7400-S25-08-ED-SS	S25	1/2 in	M36x2 x G1/2-14
D7400-S25-12-ED-SS	S25	3/4 in	M36x2 x G3/4-14
D7400-S25-20-ED-SS	S25	1-1/4 in	M36x2 x G1-1/4-11
D7400-S30-20-ED-SS	30 mm	1-1/4 in	M42x2 x G1-1/4-11
