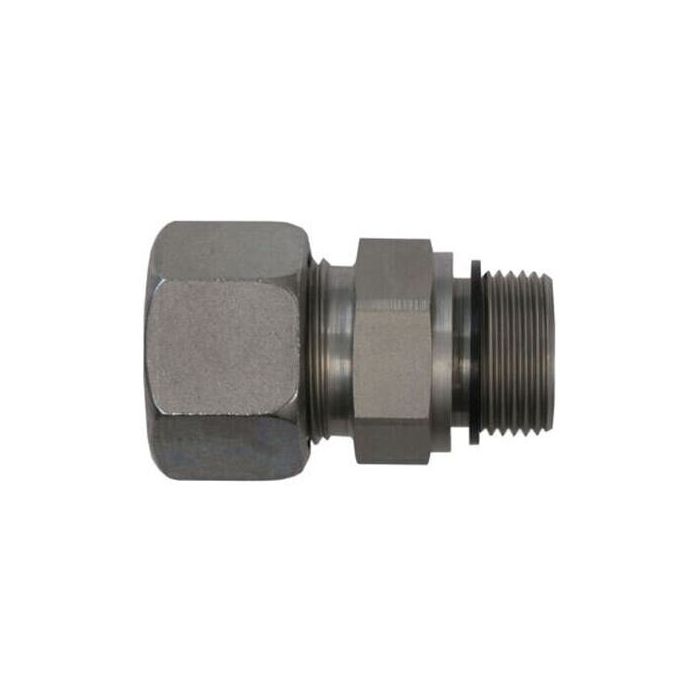

BRENNAN SS MBT X MBSP

Description & Features

The Brennan SS MBT X MBSP is crafted from straight stainless steel, ensuring durability and resistance to corrosion. This hydraulic fitting is designed for applications requiring a robust and secure connection, featuring a DIN Metric Tube Compression connection on one end, compatible with heavy 25mm tube OD. The other end features a Male BSPP Form E Captive Seal with a thread size of 1/2-14, adhering to ISO 1179 and ISO 8434-6 standards for international compatibility.

Capable of withstanding a maximum dynamic pressure of 400 bar, this fitting is suited for high-pressure hydraulic systems. Its Viton® o-ring seal ensures leak-proof performance even in demanding environments. With an overall length of 62.0 mm and a centerline length of 23.0 mm, it fits seamlessly into complex hydraulic assemblies. The Brennan SS MBT X MBSP is an ideal choice for professionals seeking reliable and precise hydraulic connections.

SKU: D7400-S25-08-ED-SS

Supplier Part Number (MPN): D7400-S25-08-ED-SS

Specifications

Brand BRENNAN	Additional Information Heavy-Duty	Connection Size 1 S25	Connection Size 2 1/2 in	Connection Type Male BSP, Metric	Connection Type 1 DIN Tube	Connection Type 2 Male BSPP Elastomeric Seal	Dimension Standards BS 5200, DIN 3852-11, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6	Dimensions 62 mm L	Fitting Type Tube End Fitting	Hex Size 41 mm	Material Stainless Steel	Material Construction 316Ti Stainless Steel	Seam Material FKM	Series D7400-ED Series	Thread Size M36x2 x G1/2-14

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
D7400-S12-04-ED-SS	L12	1/4 in	M20x1.5 x G1/4-19
D7400-S12-08-ED-SS	L12	1/2 in	M20x1.5 x G1/2-14
D7400-S16-08-ED-SS	S16	1/2 in	M24x1.5 x G1/2-14
D7400-S20-08-ED-SS	20 mm	1/2 in	M30x2 x G1/2-14
D7400-S25-12-ED-SS	S25	3/4 in	M36x2 x G3/4-14
D7400-S25-20-ED-SS	S25	1-1/4 in	M36x2 x G1-1/4-11
D7400-S30-20-ED-SS	30 mm	1-1/4 in	M42x2 x G1-1/4-11
