BRENNAN SS MBT X MBSPP

Description & Features

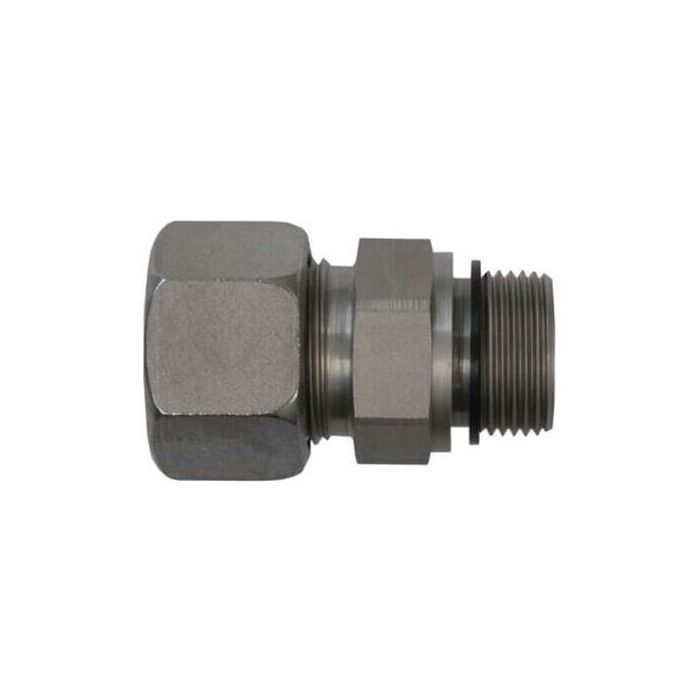

This BRENNAN SS MBT X MBSPP fitting features a straight stainless steel construction for durability and corrosion resistance. Designed for heavy-duty applications, it ensures a secure connection in demanding hydraulic environments.

With a maximum dynamic pressure of 400 bar, this fitting is suitable for high-pressure systems. It features a DIN metric tube compression connection with a 25mm tube OD on one end, and a Male BSPP Form E captive seal with a 3/4-14 thread size on the other, providing versatile connection options.

SKU: D7400-S25-12-ED-SS

Supplier Part Number (MPN): D7400-S25-12-ED-SS

Specifications

Brand BRENNAN	Additional Information Heavy-Duty	Connection Size 1 S25	Connection Size 2 3/4 in	Connection Type Male BSP, Metric	Connection Type 1 DIN Tube	Connection Type 2 Male BSPP Elastomeric Seal	Dimension Standards BS 5200, DIN 3852-11, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6	Dimensions 64 mm L	Fitting Type Tube End Fitting	Hex Size 41 mm	Material Stainless Steel	Material Construction 316Ti Stainless Steel	Seam Material FKM	Series D7400-ED Series	Thread Size M36x2 x G3/4-14

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
D7400-S12-04-ED-SS	L12	1/4 in	M20x1.5 x G1/4-19
D7400-S12-08-ED-SS	L12	1/2 in	M20x1.5 x G1/2-14
D7400-S16-08-ED-SS	S16	1/2 in	M24x1.5 x G1/2-14
D7400-S20-08-ED-SS	20 mm	1/2 in	M30x2 x G1/2-14
D7400-S25-08-ED-SS	S25	1/2 in	M36x2 x G1/2-14
D7400-S25-20-ED-SS	S25	1-1/4 in	M36x2 x G1-1/4-11
D7400-S30-20-ED-SS	30 mm	1-1/4 in	M42x2 x G1-1/4-11

Product Questions & Answers (1)

Question by: Janet S on Dec 29, 2025, 9:03 PM

I need a fitting that can hold up. How durable is this thing?

Answer by: Customer Support on Dec 30, 2025, 9:33 PM

This fitting features straight stainless steel construction, so it's built for durability and corrosion resistance, even in heavy-duty hydraulic applications.
