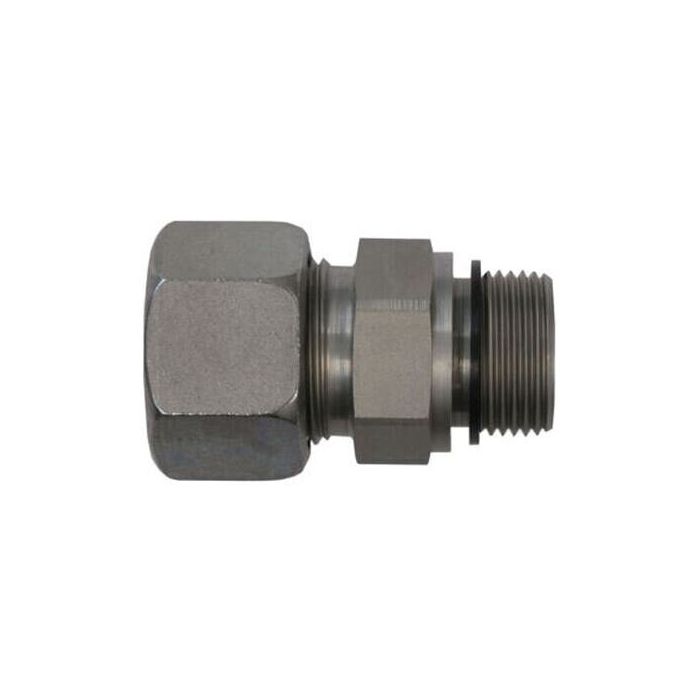

BRENNAN SS MBT X MBSPP

Description & Features

Designed for robust hydraulic applications, the Brennan SS MBT X MBSPP offers reliable performance with its straight stainless steel construction. This fitting features a DIN Metric Tube Compression connection on one end, accommodating heavy 25mm outer diameter tubes, while the opposite end connects via a Male BSPP Form E Captive Seal with a 1-1/4-11 thread size. The component adheres to DIN 2353, ISO 8434-1, ISO 1179, and BS 5200 specifications, ensuring compatibility and high-quality standards.

With an overall length of 68 mm and a maximum dynamic pressure rating of 400 bar, this component is ideal for high-pressure environments. The Viton® O-ring seal provides excellent resistance to chemicals and extreme temperatures, enhancing durability and sealing integrity. Brennan Industries' precision engineering ensures that this fitting meets the rigorous demands of industrial hydraulic systems.

SKU: D7400-S25-20-ED-SS

Supplier Part Number (MPN): D7400-S25-20-ED-SS

Specifications

Brand BRENNAN	Additional Information Heavy-Duty	Connection Size 1 S25	Connection Size 2 1-1/4 in	Connection Type Male BSP, Metric	Connection Type 1 DIN Tube	Connection Type 2 Male BSPP Elastomeric Seal	Dimension Standards BS 5200, DIN 3852-11, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6	Dimensions 68 mm L	Fitting Type Tube End Fitting	Material Stainless Steel	Material Construction 316Ti Stainless Steel	Seam Material FKM	Series D7400-ED Series	Thread Size M36x2 x G1-1/4-11

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
D7400-S12-04-ED-SS	L12	1/4 in	M20x1.5 x G1/4-19
D7400-S12-08-ED-SS	L12	1/2 in	M20x1.5 x G1/2-14
D7400-S16-08-ED-SS	S16	1/2 in	M24x1.5 x G1/2-14
D7400-S20-08-ED-SS	20 mm	1/2 in	M30x2 x G1/2-14
D7400-S25-08-ED-SS	S25	1/2 in	M36x2 x G1/2-14
D7400-S25-12-ED-SS	S25	3/4 in	M36x2 x G3/4-14
D7400-S30-20-ED-SS	30 mm	1-1/4 in	M42x2 x G1-1/4-11
