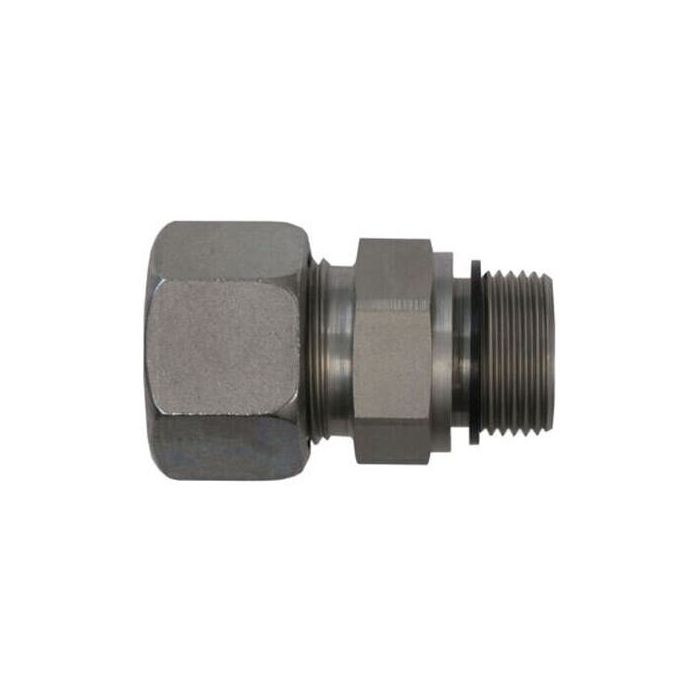

S30MBT-20MBSPP ED STRAIGHT

Description & Features

Designed for heavy-duty hydraulic line connections, the S30MBT-20MBSPP ED Straight fitting joins a 30mm OD tube compression end to a 1-1/4-11 Male BSPP Form E captive seal port. The compression side conforms to DIN 2353 and ISO 8434-1 standards with an M42x2.0 thread, while the BSPP port end meets ISO 1179, ISO 8434-6, and Bs 5200 specifications.

Manufactured from straight steel by Brennan Industries, this straight-body fitting carries a maximum dynamic pressure rating of 400 bar. The captive seal uses an Nbr O-ring, providing reliable sealing against fluid ingress at the port connection. Overall length measures 71.0mm, with a 50.0mm hex for wrench engagement. Suited for mobile and industrial hydraulic circuits where metric tube and BSPP port connections are required within the same assembly.

SKU: D7400-S30-20-ED

Supplier Part Number (MPN): D7400-S30-20-ED

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number D7400-S30-20-ED	Product Weight 1.55 lbs

Product Questions & Answers (1)

Question by: Lance B on May 1, 2025, 7:10 AM

Is this thing gonna hold up in a hydraulic system on a tractor?

Answer by: Customer Support on May 2, 2025, 6:06 PM

Designed for heavy-duty hydraulic connections, this fitting can handle a maximum dynamic pressure of 400 bar, making it suitable for mobile hydraulic circuits like those found on tractors.
