L12FMSP-06MBSPP ED STRAIGHT

Description & Features

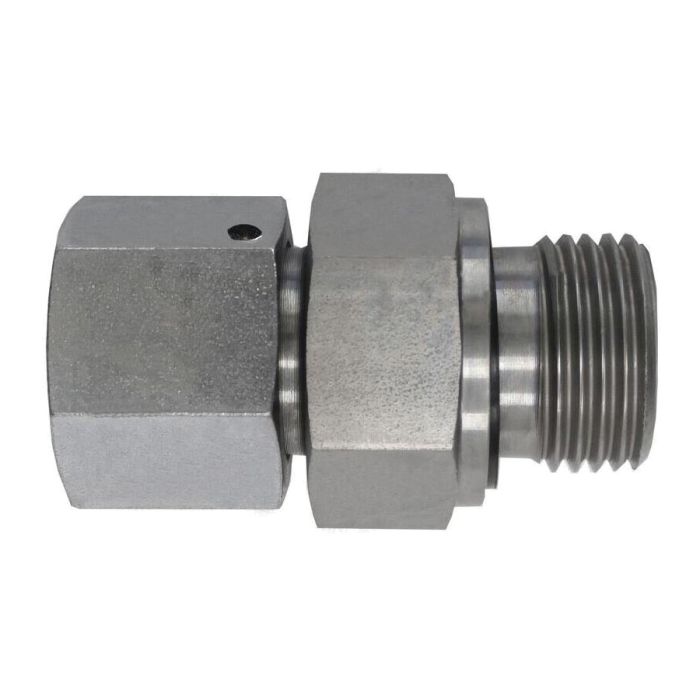

This straight steel fitting, L12FMSP-06MBSPP ED STRAIGHT, is part of the D7505-SP-ED series. It features a female metric standpipe DIN24D connection with M18X1.5 tube size conforming to DIN 2353 and ISO 8434-1 standards. The male BSPP form E captive seal connection, adhering to ISO 1179, ISO 8434-6, and BS 5200 specifications, has a 3/8-19 thread size and 7.0 mm thread ID.

With a 22.0 mm hex C 1 dimension, this fitting uses an NBR O-ring seal. It is designed for use in hydraulic applications requiring a reliable and secure connection.

SKU: D7505-SP-L12-06-ED

Supplier Part Number (MPN): D7505-SP-L12-06-ED

Specifications

Brand BRENNAN	Additional Information Light-Duty	Connection Size 1 L12	Connection Size 2 6 mm	Connection Type Female Metric Swivel, Male BSP	Connection Type 1 Female Metric Swivel	Connection Type 2 Male BSPP	Dimension Standards BS 5200, DIN 2353, ISO 8434-1, ISO 1179, ISO 8434-6	Fitting Type Adapter	Hex Size 22 mm	Material Steel	Material Construction Steel	Seam Material NBR	Series D7405 Series	Thread Size M18x1.5 x 3/8-19

Product Questions & Answers (1)

Question by: Janet L on Dec 7, 2025, 5:43 PM

Will this fitting work with a metric tube that's M18X1.5?

Answer by: Customer Support on Dec 9, 2025, 6:50 AM

Yes, this straight steel fitting is designed for use with M18X1.5 tubes, conforming to DIN 2353 and ISO 8434-1 standards.
