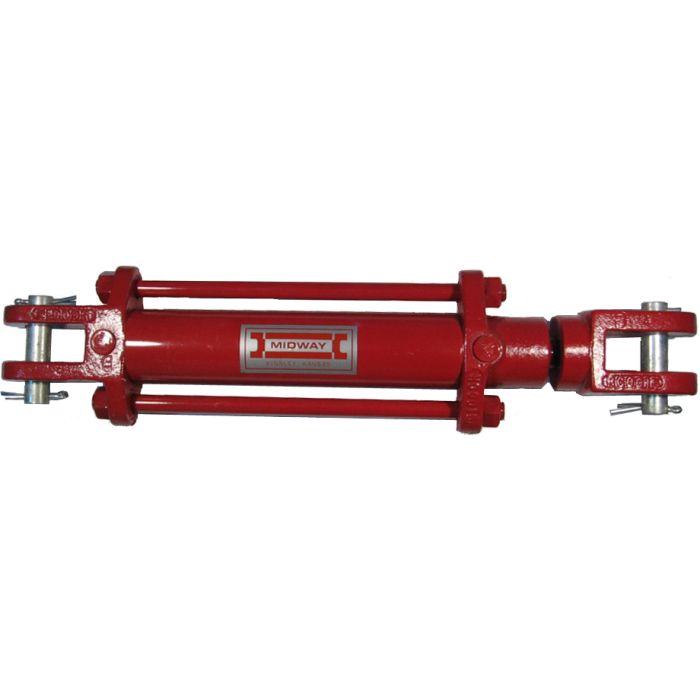

DA Series Tie Rod Hydraulic Cylinders, Up To 2500 PSI
Description & Features
| Features | Ductile iron rod clevis, base clevis and cylinder head. Aluminum alloy piston with o-ring seal and backup rings. Self locking piston nut. Metal clad rod wiper. Ground & polished chrome plated rod. Precision honed cylinder tube. High tensile steel tie rods. Zinc plated clevis pins and clips. |
| Maximum Operating Pressure | 2500 PSI. |
Products
| Model Number | Bore | Stroke | Rod Diameter | Ports | Pin to Pin Retracted | Pin to Pin Extended | Pin Diameter | Price | Action |
|---|---|---|---|---|---|---|---|---|---|
1504TR DA Series Tie Rod Cylinder |
1.5 |
4 |
0.75 |
1/4 NPT |
13.25 |
17.25 |
0.625 |
|
|
1506TR DA Series Tie Rod Cylinder |
1.5 |
6 |
0.75 |
1/4 NPT |
15.25 |
21.25 |
0.625 |
|
|
1508TR DA Series Tie Rod Cylinder |
1.5 |
8 |
0.75 |
1/4 NPT |
17.25 |
25.25 |
0.625 |
|
|
1512TR DA Series Tie Rod Cylinder |
1.5 |
12 |
0.75 |
1/4 NPT |
21.25 |
33.25 |
0.625 |
|
Product Questions & Answers (1)
Question by: Glen M on Feb 18, 2026, 2:33 PM
What kind of applications is this cylinder best suited for?
Answer by: Customer Support on Feb 20, 2026, 6:56 AM
These tie rod hydraulic cylinders are suited for industrial mobile and stationary hydraulic systems requiring reliable, serviceable linear force output within the 2500 PSI operating range.
