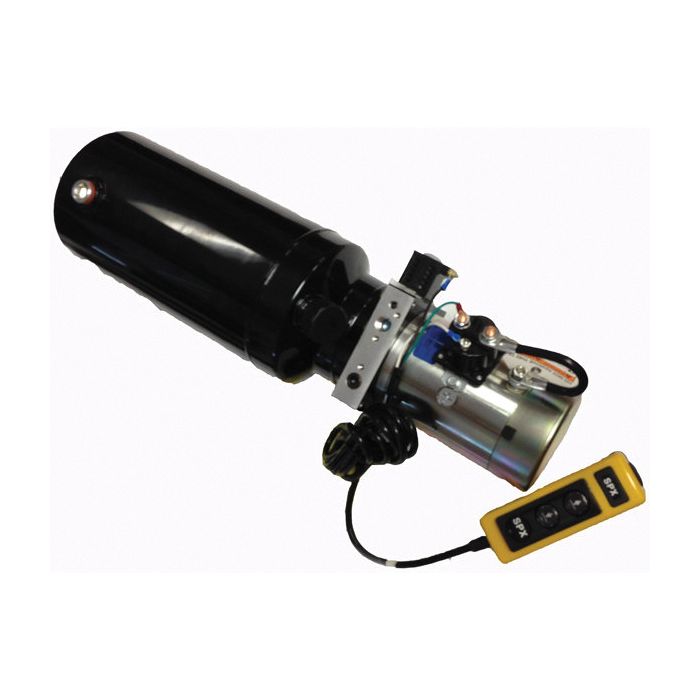

DC-20SF Series Solenoid Operated Power Up/Gravity Down Power Unit, 12V DC 1 Terminal Std. Duty Corrosion Resistant Plate Finish Motor, 2.20 GPM At 500 PSI, 1.30 GPM At 2000 PSI

Description & Features

The DC-20SF Series Solenoid Operated Power Up/Gravity Down Power Unit features a 12V DC 1 Terminal motor with a corrosion-resistant plate finish. With a flow rate of 2.20 GPM at 500 PSI and 1.30 GPM at 2000 PSI, this unit ensures efficient performance in demanding applications.

This power unit from SPX Flow US, LLC includes an internal case grounded motor start switch and offers a relief setting of 2500 PSI. The motor's current rating is 120A at 500 PSI and 235A at 2000 PSI, suitable for various industrial uses.

The oil capacity is sold separately, providing flexibility based on application needs. Primarily designed for industrial sectors, it meets high-performance standards and reliability benchmarks.

Supplier Part Number: DC-20SF

Specifications

Current At 500 psi: 120 A, At 2000 psi, 235 A	Cylinder Compatibility Single-Acting	Maximum Operating Pressure 2500 psi	Motor 12 VDC 1 Terminal Standard-Duty Corrosion-Resistant Plate Finish	Motor Start Switch Case (Internal) Grounded	Pump Control Type Solenoid	Valve Function Gravity Down, Hold, Power Up	Valve Operation Solenoid

Product Questions & Answers (5)

Question by: Neil D on Mar 13, 2026, 12:05 PM

What kinda current draw we lookin at with this thing at, say, 500 PSI? And then crank it up to 2000?

Answer by: Customer Support on Mar 15, 2026, 9:30 AM

At 500 PSI, it pulls 120A. When you're pushing 2000 PSI, it'll draw 235A.

Question by: Harold F on Nov 22, 2025, 4:46 PM

trying to size a pump, what kind of flow do you actually get out of this unit at working pressure?

Answer by: Customer Support on Nov 24, 2025, 4:38 PM

At 500 PSI it’s rated 2.20 GPM, and at 2000 PSI it’s rated 1.30 GPM, so you’ll see the flow drop as pressure goes up.

Question by: Norm M on Jan 1, 2026, 1:00 PM

what's the flow rate on this thing drop to once you get up around 2000 psi? trying to figure out if it'll keep up with my setup

Answer by: Customer Support on Jan 3, 2026, 6:27 AM

At 2000 PSI you're looking at 1.3 GPM. Down at 500 PSI it moves 2.2 GPM. So yes, there's a noticeable drop as pressure climbs, which is pretty standard for this type of unit. If your application is running closer to that higher pressure range most of the time, plan around the 1.3 GPM figure to be safe.

Question by: Billy P on Apr 23, 2025, 9:06 AM

What kinda oil should I be usin' in this thing?

Answer by: Customer Support on Apr 24, 2025, 3:56 PM

Oil capacity is sold separately, giving you the flexibility to choose based on the specific needs of your application.

Question by: Rex C on Jan 17, 2026, 5:43 PM

got a 12v setup already, is this unit the one-terminal motor style or do i need to rewire stuff

Answer by: Customer Support on Jan 19, 2026, 12:51 PM

Comes with a 12V DC, 1 terminal, standard duty motor, and the motor start switch is case grounded internally. That means it is set up for a one terminal configuration with the ground handled through the case.
