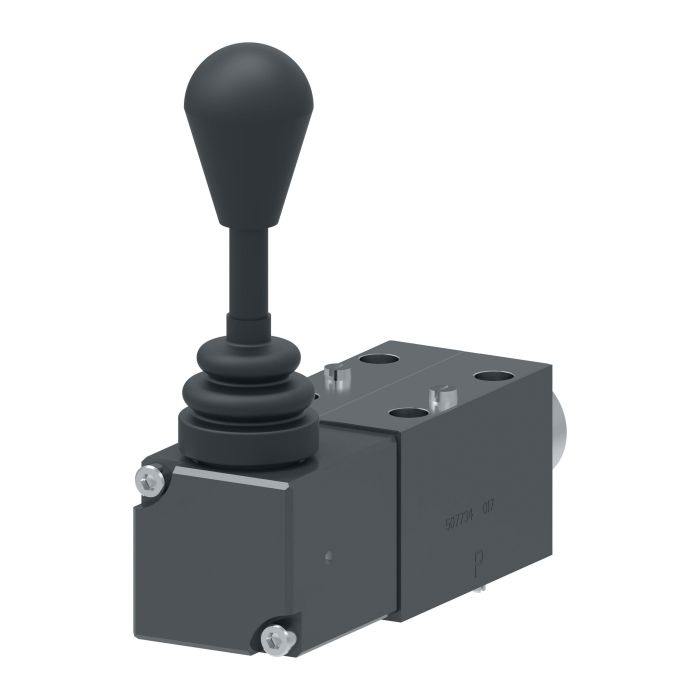

main product photo

DG17V-3 Series Subplate/Manifold Mount NFPA Size D03 Manual Valve, 4-way 3-position, Spring Centered, In Center, P Blocked, A & B to Tank

Ask A Question

Description & Features

The DG17V-3 Series Subplate/Manifold Mount NFPA Size D03 Manual Valve from Danfoss (Power Solutions II LLC) is crafted for a wide range of high-pressure applications including die casting & foundry marine/offshore and machine tools. This 4-way 3-position valve designed for double acting cylinders or reversible motors ensures precise flow control with its spring centered operation.

Fitted with Viton seals as standard the valve delivers a reliable performance under a maximum operating pressure of 5000 PSI for ports P A and B. The in-center circuit configuration blocks port P while directing ports A & B to the tank. Suitable for mounting on industry-standard surfaces it supports a maximum flow rate of 20 GPM. The recommended filtration level is ISO 18/15 or cleaner for optimal longevity.

The compact design facilitates easy subplate mounting utilizing four 10-24 x 1-1/4 Grade 8 socket head capscrews torqued to 40-50 lb. in. This flow control hydraulic valve is an essential component for test equipment & simulation primary metal and press applications among others.

Model Number: DG17V-3-6C-60

Supplier Part Number: 02-135316

Specifications

Application
Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Circuit Type
In Center, P Blocked, A & B to Tank
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
Key
A
Leakage
Standard
Seal Material
Buna-N
Special Features
None
Spool Action
Spring Centered
Supplier Part Number
02-135316
Type
4-way 3-position
Alternate Part Numbers
Alternate Part Number C1AC70, Alternate Part Number DG17V36C60, Alternate Part Number MINO-00900H13839
Product Weight
4.10 lbs

Related Documents

Similar Products

Model Number Part Number Key Type Spool Action Circuit Type Features Price Action
DG17V-3 Series Subplate/Manifold Mount NFPA Size D03 Manual Valve, 4-way 3-position, Spring Centered, In Center, P Blocked, A & B to Tank

DG17V-3-6C-60 DG17V-3 Series D03 Manual Valve

02-135316

A

4-way 3-position

Spring Centered

In Center, P Blocked, A & B to Tank

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

Product Questions & Answers (3)

Question by: Donna W on Jan 27, 2026, 6:14 AM
trying to match up a hand valve we’ve got, is this one the D03 subplate type and not a line mount?
Answer by: Customer Support on Jan 28, 2026, 5:41 PM
Yes, it's designed for subplate or manifold mounting, conforming to the NFPA size D03 as a manual valve. It isn't an in line, pipe, or cartridge mount.
Question by: Roy O on Mar 14, 2025, 7:09 AM
When the handle’s centered, what’s it do with the ports on this 4 way 3 position valve?
Answer by: Customer Support on Mar 16, 2025, 12:19 PM
With the handle in the middle, it's spring-centered with the P port blocked, while A and B are open to the tank. This is the center position configuration specific to this valve.
Question by: Lance A on Jun 9, 2025, 6:04 AM
Is this DG17V-3 valve set up for a manifold mount with NFPA D03 size? I need to swap out an old spring-centered one.
Answer by: Customer Support on Jun 12, 2025, 12:57 PM
Yep, it goes onto a subplate or manifold, following NFPA D03 setups. It's a 4-way, 3-position manual valve with spring centering that blocks port P while opening A and B to the tank at the center.
