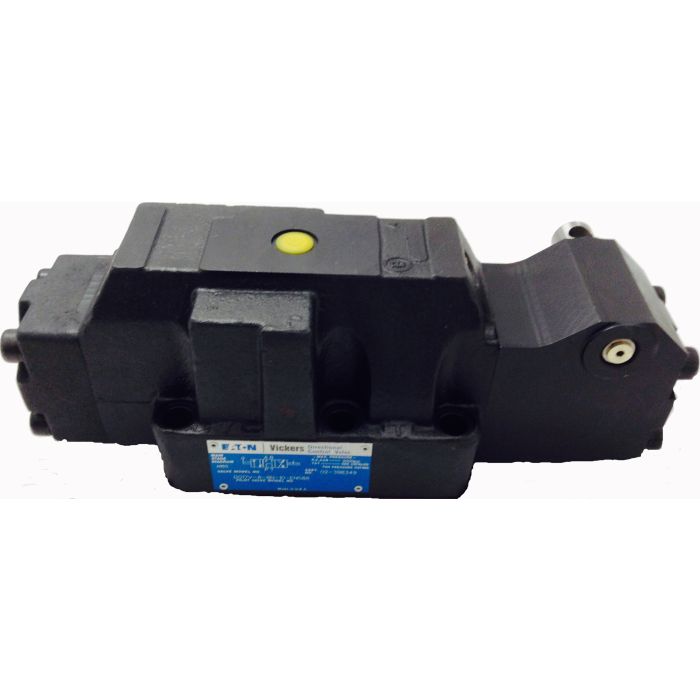

DG17V-8 Series Subplate/Manifold Mount NFPA Size D08 Manual Valves, Up Tp 180 GPM & 5000 PSI

Description & Features

Features	Available with a wide variety of spool and spring arrangements. Solid cast iron body and core passages for maximum strength and minimal pressure drop.
Maximum Flow Rate	Dependent on spool/spring combination.
Maximum Operating Pressure	Ports P, A, B and T: 5000 PSI. (CAUTION: Pressures over 3000 PSI require steel subplate or manifold).
Mounting Considerations	Detented models should mount with longitudinal axis horizontal. Other models may be mounted in any position.
Note	These valves are available in a wide variety of configurations not shown in this catalog. Contact us for detailed information
Size D08 Subplates & Manifolds	Subplates must be ordered seperately. When a subplate is not used, a machined pad must be provided for mounting. The pad must be flat within 0.0005 in. and smooth within 32 microinch and conform to ISO 4401-08-07-0-94, NFPA T3.5.1 R2-2002 D08.

Products

Model Number	Part Number	Function	Rated Flow	Seal Material	Price	Action
DG17V-8-8N-10-EN588 DG17V-8 Series D08 Manual Valve	02-398349	Tandem spool (P to T in neutral), Open crossover, 3-position detented. (Valve handle not included)	180	Buna-N

Product Questions & Answers (1)

Question by: Rick W on Aug 27, 2025, 1:39 PM

What kinda mounting options do these valves have? Just tryin' to figure out if it'll work for my setup.

Answer by: Customer Support on Aug 28, 2025, 6:16 PM

These DG17V-8 series valves are designed to mount on industry-standard subplates or manifolds. If you're not using a subplate, you'll need a machined pad conforming to ISO 4401-08-07-0-94 standards.
