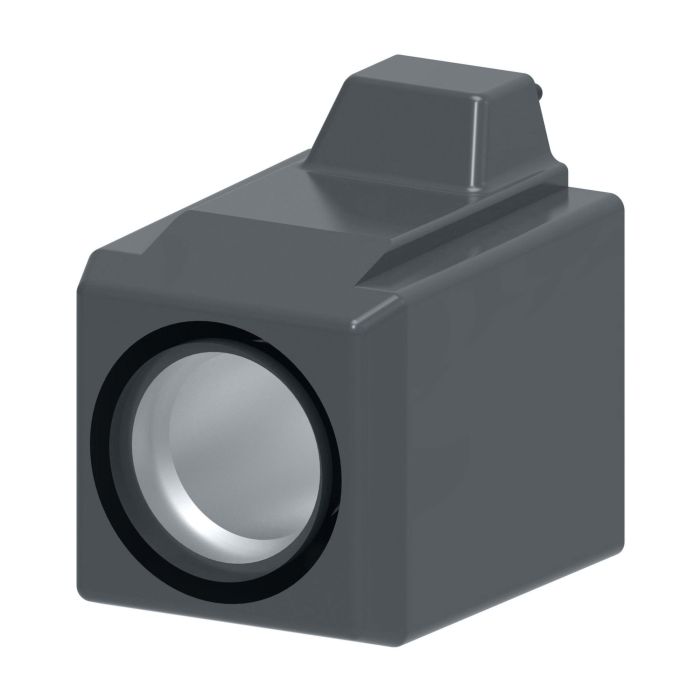

DG4S4-01 60 Series Danfoss / Eaton Coils

The Vickers by Danfoss / Eaton Coils are designed for demanding applications including harvesters refuse haulers mobile and industrial environments. These coils are characterized by their compact design and continuous duty capability making them a reliable choice for various operational needs. Designed to meet rigorous performance standards these coils are internally rectified ensuring efficient functionality even in challenging conditions. Rated for maximum operating pressure of 3600 PSI (Ports P A & B) with petroleum oil and 1000 PSI with high water base fluids they deliver robust performance. It is important to note that pressures exceeding 3000 PSI require a steel subplate or manifold. Mounting considerations include the use of 4ea 1/4-20 x 1-1/2 Grade 8 socket head capscrews torqued to a maximum of 112 lb.in. with lubricated threads. Detented models should be mounted with the longitudinal axis horizontal while other models can be installed in any position. The DG4S4-01 60 Series Danfoss / Eaton Coils operate within a temperature range of 70deg;F to 120deg;F ensuring adaptability to various operational environments. This product is available in numerous configurations not detailed in the catalog; for more information please contact us.

Supplier Part Number: 868982
