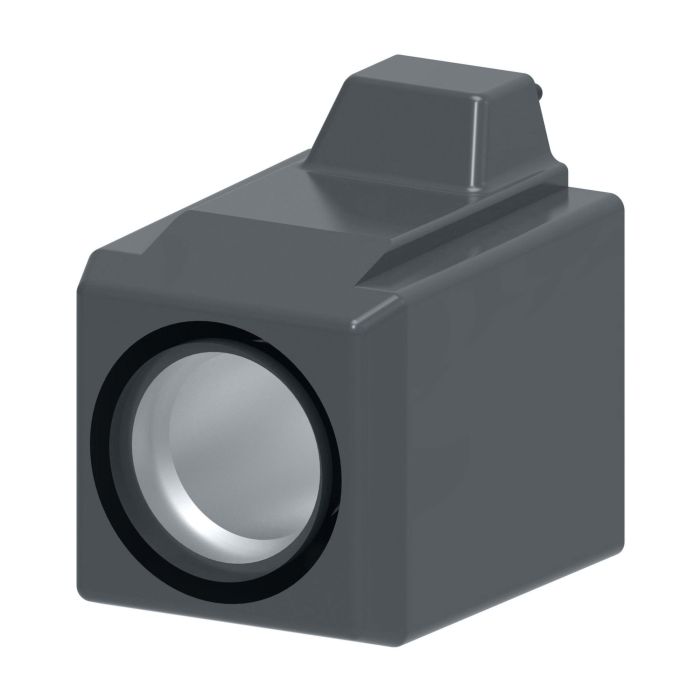

DG4S4-01 60 Series Danfoss / Eaton Coils

Description & Features

Eaton Vickers DG4S4-01 60 Series Danfoss / Eaton Coils are internally rectified and feature a compact design for continuous duty applications.

These coils are used in mobile and industrial applications, as well as harvesters and refuse haulers. Maximum operating pressure is 3600 PSI with petroleum oil or 1000 PSI with High Water Base fluids. Standard mounting bolts are 4ea 1/4-20 x 1-1/2 Grade 8 socket head capscrews (Vickers Bolt Kit 255633), torqued to 112 lb.in. maximum with threads lubricated.

Temperature range: 70°F to 120°F.

SKU: 868983

Supplier Part Number (MPN): 868983

Alternate Part Numbers: C1FL31

Specifications

Check Valve Without Check Valve	Diode Without Diode	Mounting Bolt (4) 1/4-20 x 1-1/2 in Grade 8 Socket Head Cap Screw	Pressure Rating 3600 psi with Petroleum Oil, 1000 psi High Water Base Fluids Ports P, A, B and T	Segment Code B	Specifications D Type	Suitable For Use With Cartridge Valves	Switch Connector Without Switch Connector

Product Questions & Answers (2)

Question by: Kirk P on Jun 7, 2025, 1:54 PM

these coils rated for continuous duty or do they need to cycle off and cool down periodically?

Answer by: Customer Support on Jun 9, 2025, 6:18 AM

Continuous duty is built into the spec on these. You won't need to plan rest cycles or worry about heat buildup from sustained operation. That makes them a solid fit for equipment that runs long shifts without a lot of downtime, like refuse haulers or harvesters that stay in the field all day.

Question by: Jerry M on Dec 29, 2025, 9:23 PM

Will this coil work on any DG4S4-01 valve?

Answer by: Customer Support on Dec 31, 2025, 12:57 PM

It fits Eaton DG4S4-01 60 Series valves, used in mobile and industrial applications like harvesters and refuse haulers.
