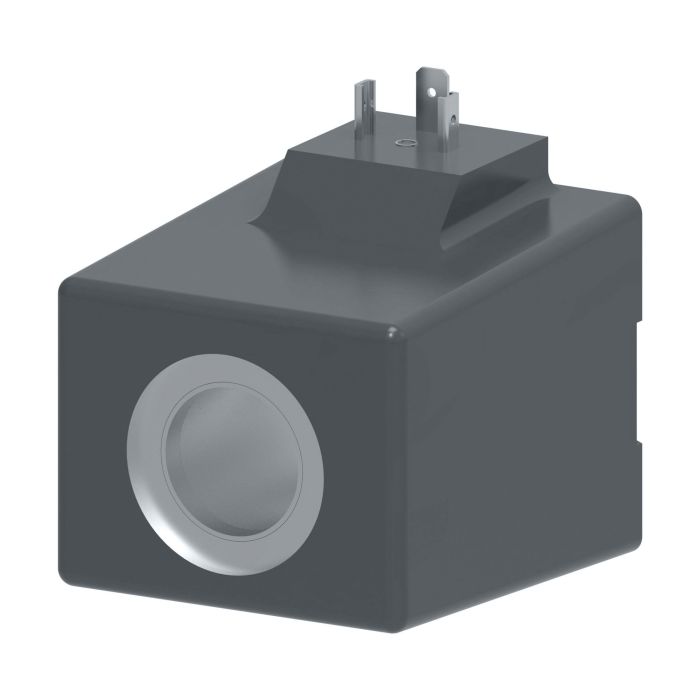

DG4S4-01 60 Series Danfoss / Eaton Coils

DG4S4-01 60 Series Danfoss / Eaton Coils cater to a range of industrial and mobile applications such as harvesters and refuse haulers. Engineered to deliver optimal performance these coils support continuous duty and feature a compact design. They are internally rectified ensuring reliability and efficiency.

These coils are adaptable to various configurations and boast a maximum operating pressure of 3600 PSI for Ports P A and B with petroleum oil. For High Water Base fluids the maximum pressure is 1000 PSI while Port T withstands up to 1000 PSI. Proper mounting is crucial; detented models should be positioned horizontally although other models are more flexible in orientation.

Temperature performance ranges between 70deg;F and 120deg;F making these coils suitable for diverse working conditions. Standard mounting bolts required are 1/4-20 x 1-1/2 Grade 8 socket head capscrews torqued to 112 lb.in. with lubricated threads.

Note: Details on additional available configurations are accessible upon request.

MPN seg_code_a

Supplier Part Number 879141
