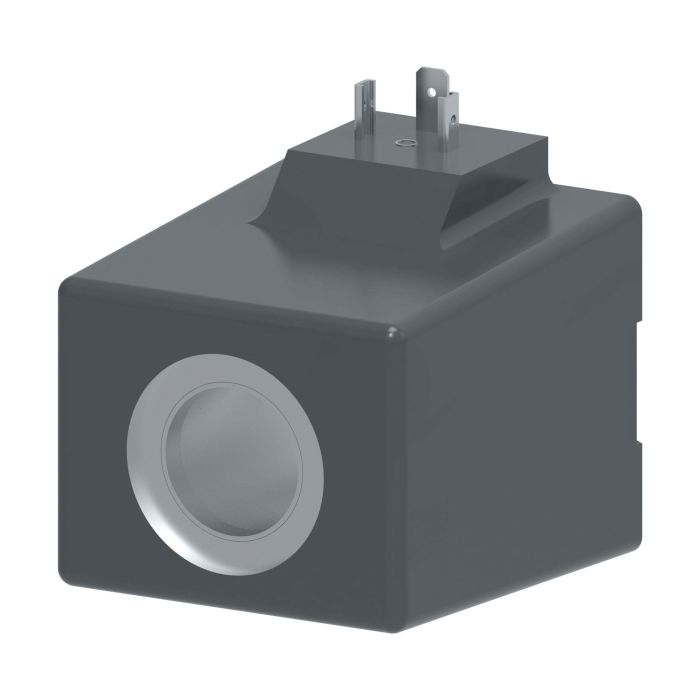

DG4S4-01 60 Series Danfoss / Eaton Coils

DG4S4-01 60 Series Danfoss / Eaton Coils are engineered for a range of demanding applications including harvesters refuse haulers as well as mobile and industrial uses. These coils feature an internally rectified design enhancing performance reliability. They operate efficiently under continuous duty ensuring sustained operation.

The maximum operating pressure for ports P A and B is 3600 PSI with petroleum oil and 1000 PSI with high water base fluids while port T is rated at 1000 PSI. It is crucial to note that pressures exceeding 3000 PSI necessitate the use of a steel subplate or manifold.

The DG4S4-01 60 Series Coils have a compact design facilitating easy integration into existing systems. Standard mounting is secured with four 1/4-20 x 1-1/2 grade 8 socket head capscrews. These coils offer operational flexibility and can be mounted in any position although detented models should be mounted with the longitudinal axis horizontal.

The temperature range for these coils spans from 70deg;F to 120deg;F. Various configurations are available beyond the standard offerings suitable for specific requirements and technical specifications.

Supplier Part Number: 879143
