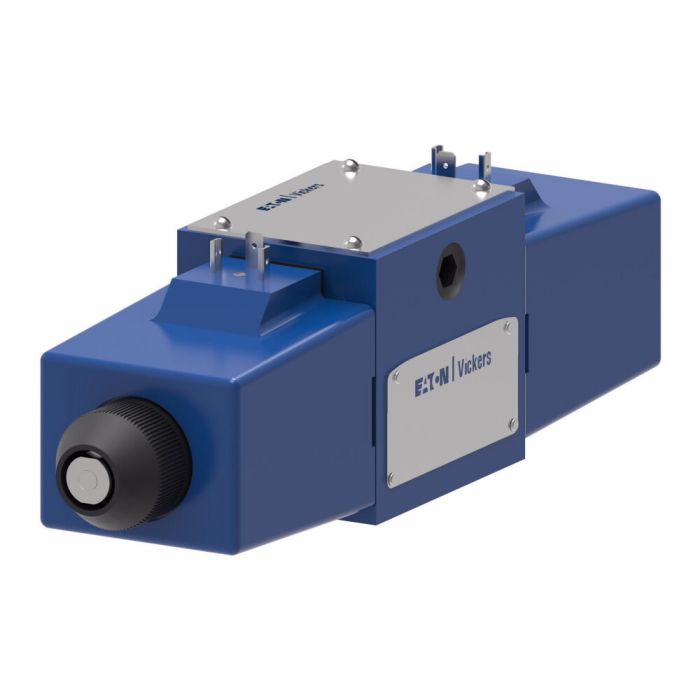

main product photo

DG4S4-01 Series Subplate/Manifold Mount NFPA Size D05 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Tandem Center, 110VAC50Hz 120VAC60Hz DIN 43650 Coil.

Ask A Question

Description & Features

The Danfoss DG4S4-01 Series Subplate/Manifold Mount NFPA Size D05 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Tandem Center, 110VAC50Hz 120VAC60Hz DIN 43650 Coil provides precise and reliable directional control for various industrial applications.

This valve, designed for primary metal processing, marine/offshore usage, and die casting, features a maximum operating pressure of 3600 PSI with petroleum oil and 1000 PSI with high water base fluids. The solenoid valve, constructed from durable gray iron, is subplate/manifold mounted for easy integration into industry-standard interfaces.

Utilizing a spring-centered, tandem center design, it operates effectively in machine tool environments, press systems, and test equipment and simulation setups.

With a flow capacity of AC Coils at 12 GPM and DC Coils at 5 GPM at 3000 PSI, the valve ensures efficient fluid management. Equipped with a DIN 43650 coil rated at 110VAC50Hz and 120VAC60Hz, it supports consistent performance across a wide range of temperatures from 70deg;F to 120deg;F.

Model Number: DG4S4-018C-U-B-60

Supplier Part Number: 02-119859

Specifications

Application
Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body Material
Gray Iron
Check Valve
No
Coil Rating
110VAC50Hz 120VAC60Hz
Coil Type
DIN 43650
Design Code
60
Diode
No
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
Fluid Cleanliness
19/17/14 micron
Interface
ISO4401-AC-05-4-A/NFPA D05
Leakage
Standard
Manual Override
None
Manual Override Option
No
Reducer Module
No
Seal Material
Buna-N
Special Features
None
Spool Center Condition
A Port and Double Offset sensing switch on B Port
Spool Monitor Switch
None
Spring Arrangement
C
Stage
Single Stage
Supplier Part Number
02-119859
Switch Connector
No
Valve Mount Type
Subplate/manifold mounted
Wattage
35
Product Weight
10.50 lbs
Alternate Part Numbers
Alternate Part Number C1JP86, Alternate Part Number DG4S4018CUB60, Alternate Part Number MINO-00900H31644

Related Documents

Similar Products

Model Number Part Number Coil Rating Coil Type Wiring Housing Features Price Action
DG4S4-01 Series Subplate/Manifold Mount NFPA Size D05 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Tandem Center, 110VAC50Hz 120VAC60Hz DIN 43650 Coil.

DG4S4-018C-U-B-60 DG4S4-01 Series D05 Solenoid Valve

02-119859

110VAC50Hz 120VAC60Hz

DIN 43650

--

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

DG4S4-01 Series Subplate/Manifold Mount NFPA Size D05 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Tandem Center, 24VDC DIN 43650 Coil.

DG4S4-018C-U-H-60 DG4S4-01 Series D05 Solenoid Valve

02-126361

24VDC

DIN 43650

--

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

Product Questions & Answers (3)

Question by: Marvin T on Feb 8, 2026, 9:28 AM
I have a D05 subplate manifold. Will this valve fit right on it?
Answer by: Customer Support on Feb 11, 2026, 2:05 PM
The critical point for compatibility is the mounting style and dimensions. This valve is a subplate or manifold-mounted unit in NFPA D05 size, which aligns with D05 subplate or manifold patterns.
Question by: Johnny W on Nov 21, 2025, 5:30 PM
What's the coil voltage and plug type for the power on this?
Answer by: Customer Support on Nov 22, 2025, 11:03 AM
It operates on an AC coil voltage of 110VAC at 50Hz or 120VAC at 60Hz, utilizing a DIN 43650 coil plug.
Question by: Earl M on Jun 4, 2025, 10:59 AM
Could this solenoid valve be used as a substitute for one on my old hydraulic press setup with a D05 mount?
Answer by: Customer Support on Jun 7, 2025, 11:13 AM
Since it's designed for NFPA D05 subplate or manifold mount, it should fit your setup if the press utilizes the same standard. Make sure to verify the coil voltage is either 110VAC 50Hz or 120VAC 60Hz with a DIN 43650 connector to match your system.
