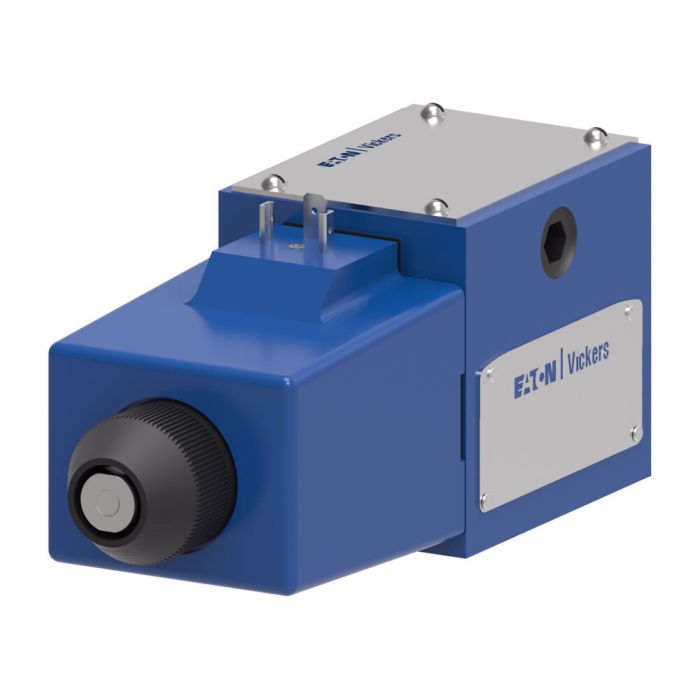

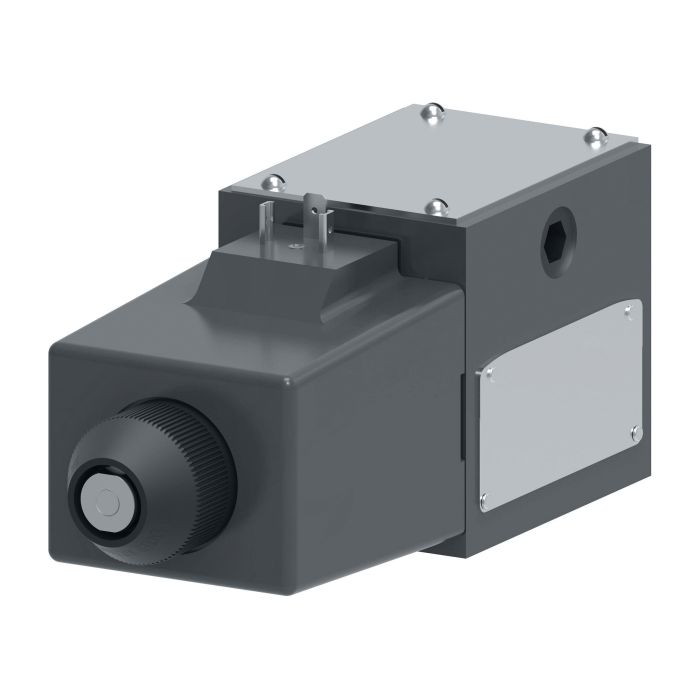

DG4S4-01 Series Subplate/Manifold Mount NFPA Size D05 Solenoid Valve, 4-Way, 2-Position, Spring Offset End-to-End, Spool / Spring Code 2A, 110VAC50Hz 120VAC60Hz DIN 43650 Coil.

Description & Features

The DG4S4-01 Series Subplate/Manifold Mount NFPA Size D05 Solenoid Valve offers efficient 4-way 2-position flow control with a spring offset configuration. Engineered by Danfoss (Power Solutions II LLC) this hydraulic valve is built with gray iron for durability and reliability in demanding applications such as die casting marine and turbine control. It features a spool/spring code of 2A and can be operated with 110VAC50Hz or 120VAC60Hz using a DIN 43650 coil type.

Compatible with industry-standard ISO4401-AC-05-4-A/NFPA D05 interfaces it supports maximum operating pressure of 3600 PSI at ports P A & B with petroleum oil. The valve is suitable for use with high water base fluids up to 1000 PSI and requires steel subplate or manifold for pressures over 3000 PSI. It delivers a maximum flow rate of 20 GPM under AC or DC coil conditions and ensures fluid cleanliness at 19/17/14 micron levels.

The design includes three- or four-way directional control and can be easily mounted on standard surfaces catering to a variety of industrial needs with thousands of models available. Offering standard leakage and a maximum temperature range between 70deg;F to 120deg;F the DG4S4-01 Series valve is an ideal choice for machine tools presses primary metal and test equipment.

MPN: DG4S4-012A-U-B-60

Supplier Part Number: 879279

Specifications

Brand Vickers by Danfoss	Actuation Identification Solenoid B	Actuator Type Solenoid	Body Material Iron	Check Valve Without Check Valve	Color Gray	Design 60 Series	Design Code 60 Series	Dimensions 6.84 in L x 2.81 in W x 3.85 in H	Diode Without Diode	Domestic/Import Domestic	grp Maximum Flow Rating 3000 psi 20 gpm AC Coil, 20 gpm DC Coil	grp Transient Conditions During Shift All Blocked	Indicator Light Without Indicator Light	Media Petroleum Oil	Number of Stages 1	Performance Standard	Reducer Module Without Reducer Module	Seal Material Buna-N	Segment Code A	Series DG4S4-01 60 Series	Sg Maximum Flow Rating Dependent On Spool/Spring Combination and Coil	Sg Maximum Operating Pressure Ports P, A and B 3600 psi with Petroleum Oil, 1000 psi with High Water Base Fluids (Caution: Pressures Over 3000 psi Require Steel Subplate or Manifold). Port T 1000 psi	Sg Mounting Bolts Standard Mounting Bolts are 4 EA 1/4-20 x 1-1/2 Grade 8 Socket Head Cap Screws (Vickers Bolt Kit 255633), Torqued To 112 lb-in. Maximum with Threads Lubricated. See Bolt Kits On	Sg Mounting Considerations Detented Models Should Mount with Longitudinal Axis Horizontal. Other Models May be Mounted in Any Position	Spool Center Condition B Port End	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Offset	Surge Suppressor Damper Without Surge Suppressor Damper	Switch Connector Without Switch Connector	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Part Number	Coil Rating	Coil Type	Wiring Housing	Features	Price	Action
DG4S4WT-012A-B-60 DG4S4-01 Series D05 Solenoid Valve	879260	110VAC50Hz 120VAC60Hz	Lead wires	Yes	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
DG4S4-012A-U-D-60 DG4S4-01 Series D05 Solenoid Valve	879280	220VAC50Hz 240VAC60Hz	DIN 43650	--	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications

Product Questions & Answers (2)

Question by: Tammy R on Aug 28, 2025, 7:11 PM

So this valve will work alright for a machine tool application?

Answer by: Customer Support on Aug 30, 2025, 6:04 PM

Yes, this DG4S4-01 series valve is definitely suitable for machine tool applications, plus presses, primary metal, and test equipment too.

Question by: Troy T on Nov 3, 2025, 7:26 PM

what's the max pressure this valve can handle at the P and A ports running petroleum oil?

Answer by: Customer Support on Nov 5, 2025, 6:05 AM

At ports P, A, and B, the rating tops out at 3600 PSI when running petroleum oil. Port T is rated lower at 1000 PSI. One thing worth keeping in mind: anything over 3000 PSI means you'll need a steel subplate or manifold. A standard cast iron subplate won't cut it at those higher pressures.
