DG4S4-01 Series Subplate/Manifold Mount NFPA Size D05 Solenoid Valves, 4-Way, 2-Position, Closed Transient Condition

Skip to the end of the images gallery

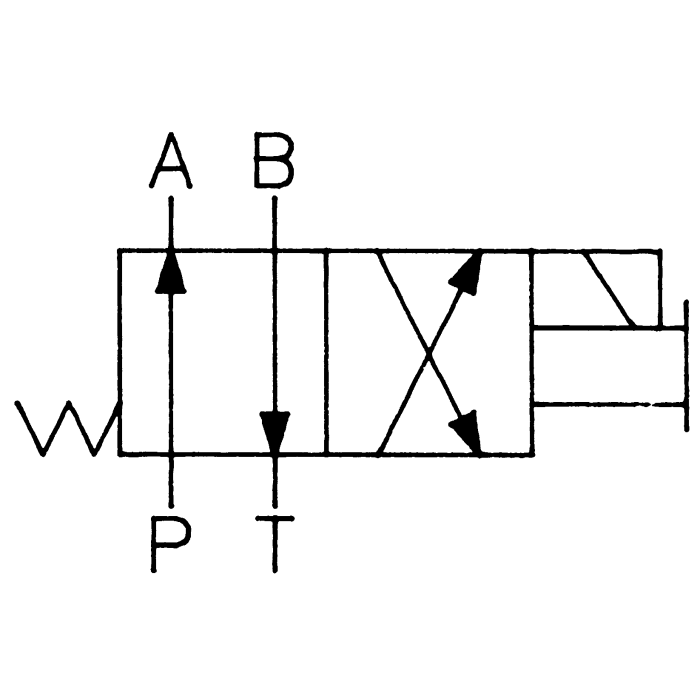

main product photo

Skip to the beginning of the images gallery

DG4S4-01 Series Subplate/Manifold Mount NFPA Size D05 Solenoid Valves, 4-Way, 2-Position, Closed Transient Condition

Description & Features

Maximum Flow Rates @ 3000 PSI	AC Coils 20 GPM, DC Coils 20 GPM.
Transient conditions during shift	All blocked.

Products

Model Number	Part Number	Coil Rating	Coil Type	Wiring Housing	Features	Price	Action
DG4S4WT-012A-B-60 DG4S4-01 Series D05 Solenoid Valve	879260	110VAC50Hz 120VAC60Hz	Lead wires	Yes	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
DG4S4-012A-U-B-60 DG4S4-01 Series D05 Solenoid Valve	879279	110VAC50Hz 120VAC60Hz	DIN 43650	--	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
DG4S4-012A-U-D-60 DG4S4-01 Series D05 Solenoid Valve	879280	220VAC50Hz 240VAC60Hz	DIN 43650	--	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications

Product Questions & Answers (1)

Question by: Neal H on Mar 22, 2026, 7:38 PM

Reckon I can mount this thing sideways?

Answer by: Customer Support on Mar 24, 2026, 6:26 AM

Detented models should be mounted horizontally, but all other configurations can be mounted in any position.
