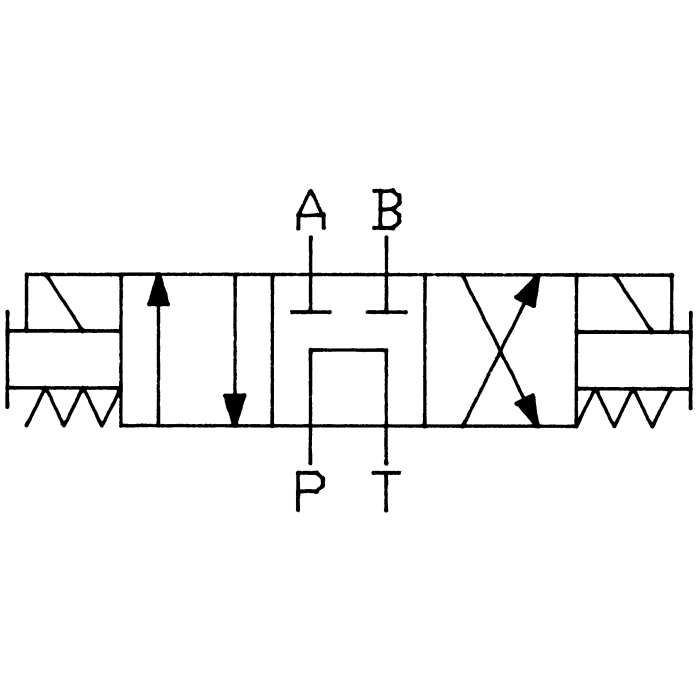

DG4S4-01 Series Subplate/Manifold Mount NFPA Size D05 Solenoid Valves, 4-Way, 3-Position, Tandem Center

Description & Features

Maximum Flow Rates @ 3000 PSI	AC Coils 12 GPM, DC Coils 5 GPM.
Transient conditions during shift	P to A: P & A restricted opening to T, B blocked. P to B: P & B restricted opening to T, A blocked.

Products

Model Number	Part Number	Coil Rating	Coil Type	Wiring Housing	Features	Price	Action
DG4S4-018C-U-B-60 DG4S4-01 Series D05 Solenoid Valve	02-119859	110VAC50Hz 120VAC60Hz	DIN 43650	--	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
DG4S4-018C-U-H-60 DG4S4-01 Series D05 Solenoid Valve	02-126361	24VDC	DIN 43650	--	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications

Product Questions & Answers (1)

Question by: Harold C on Apr 4, 2026, 3:10 PM

Reckon this would drop right in where my old Eaton DG4S4-01 60 Series valve was?

Answer by: Customer Support on Apr 6, 2026, 8:27 AM

Designed for industry-standard surfaces, this valve should mount directly in place of your old one. Just make sure you use the right mounting bolts, torqued to 112 lb.in. with lubricated threads.
