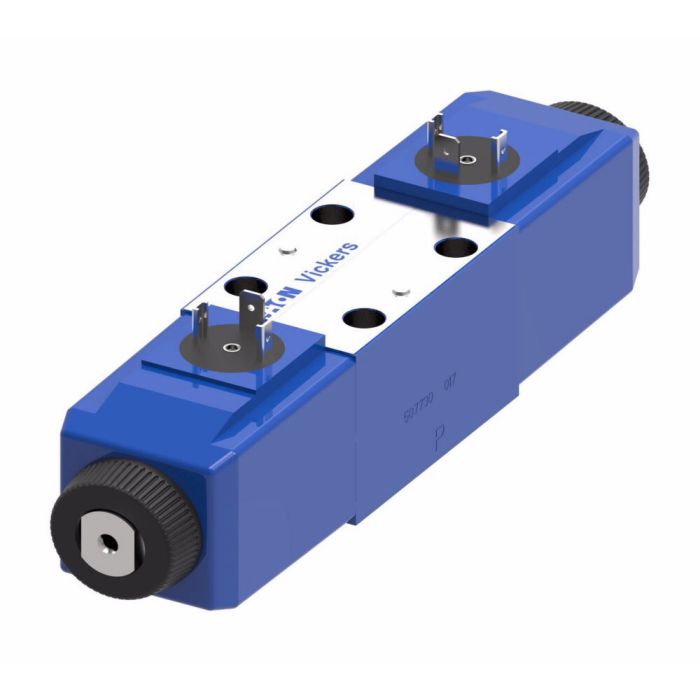

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, STD Performance, 24VDC DIN 43650 Coil.

Ask A Question

Description & Features

Ideal for demanding industrial applications, the DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve delivers reliable 4-way, 3-position control. Constructed from durable gray iron, this valve is designed to withstand high pressures up to 5075 psi, making it suitable for various environments such as die casting, machine tooling, marine, and turbine control. The valve operates with a 24VDC DIN 43650 coil, ensuring compatibility with standard industry connections.

This solenoid valve features a spring-centered, closed-center spool configuration, providing high reliability and low-pressure drops. The standard performance model supports flow rates of 8 GPM with DC coils. It includes a scratch-proof manual override and allows for coil changes without valve removal, enhancing maintenance efficiency.

SKU: 02-109025

Supplier Part Number (MPN): 02-109025

Alternate Part Numbers: C1AC31, DG4V3S2CMUH560, DSDG4V3S2CMUH560

Specifications

Application
Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body Material
Gray Iron
Check Valve
No
Coil Rating
24VDC
Coil Type
DIN 43650
Design Code
60
Diode
No
Features
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
Fluid Cleanliness
19/17/14 micron
Interface
ISO/DIS 4401-AB-03 D03
Leakage
Standard
Manual Override
Plain
Manual Override Option
No
Performance
Standard
Reducer Module
No
Seal Material
Buna-N
Special Features
None
Spool Center Condition
A Port and Double Offset sensing switch on B Port
Spool Monitor Switch
None
Spring Arrangement
C
Stage
Single Stage
Supplier Part Number
02-109025
Switch Connector
No
Tank Port Rating
100
Type
STD
Valve Mount Type
Subplate/manifold mounted
Wattage
30
Product Weight
4.80 lbs
Alternate Part Numbers
Alternate Part Number C1AC31, Alternate Part Number DG4V3S2CMUH560, Alternate Part Number DSDG4V3S2CMUH560

Related Documents

Similar Products

Model Number Part Number Type Coil Rating Coil Type Features Price Action
DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, HP Performance, 24VDC DIN 43650 Coil.

DG4V-3-2C-M-U-H7-60 DG4V-3(S) Series D03 Solenoid Valve

529760

HP

24VDC

DIN 43650

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, HP Performance, 110VAC50Hz 120VAC60Hz DIN 43650 Coil.

DG4V-3-2C-M-U-B6-60 DG4V-3(S) Series D03 Solenoid Valve

859161

HP

110VAC50Hz 120VAC60Hz

DIN 43650

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, HP Performance, 220VAC50Hz 240VAC60Hz DIN 43650 Coil.

DG4V-3-2C-M-U-D6-60 DG4V-3(S) Series D03 Solenoid Valve

859172

HP

220VAC50Hz 240VAC60Hz

DIN 43650

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, STD Performance, 24VDC DIN 43650 Coil.

DG4V-3S-2C-M-U-H5-60 DG4V-3(S) Series D03 Solenoid Valve

02-109025

STD

24VDC

DIN 43650

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
