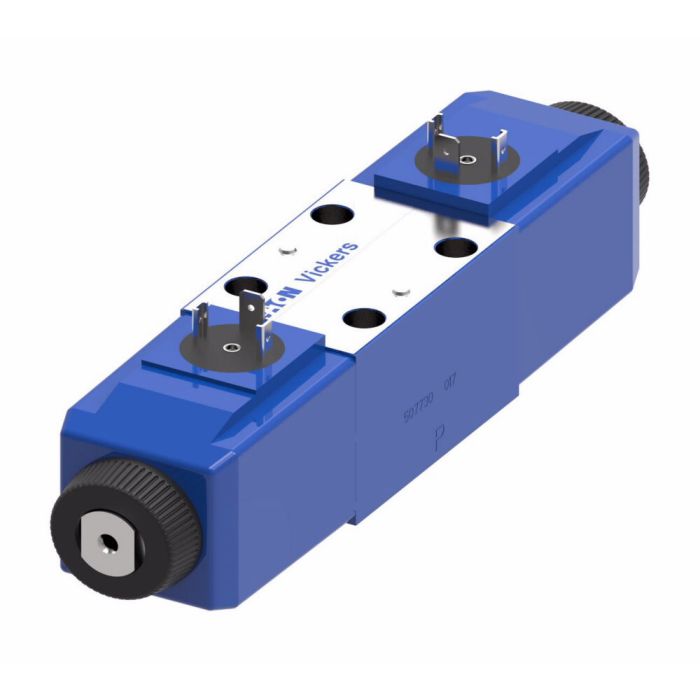

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, STD Performance, 12VDC DIN 43650 Coil.

Designed for subplate and manifold mounting across demanding industrial environments, the DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve delivers reliable 4-way, 3-position directional control with spring-centered, closed-center spool behavior. The 12VDC DIN 43650 coil can be replaced with the valve in place, reducing maintenance downtime in press, machine tool, marine/offshore, and turbine control applications.

Built to ISO 4401 Size 03 and NFPA D03 port interface standards, this single-stage valve is rated to a maximum operating pressure of 5,075 psi. The gray iron body uses Buna-N seals and accommodates mineral oil at fluid temperatures from -4°F to 158°F. Standard performance flow capacity for DC coils reaches 8 GPM. A plain manual override is included, and the valve may be mounted in any position.

Suited for die casting, primary metals, test equipment, and similar high-cycle applications where consistent spool response and low pressure drop are priorities.

SKU: 02-109055

Supplier Part Number (MPN): 02-109055

Alternate Part Numbers: C1AC37, DG4V3S2CMUG560, DSDG4V3S2CMUG560
