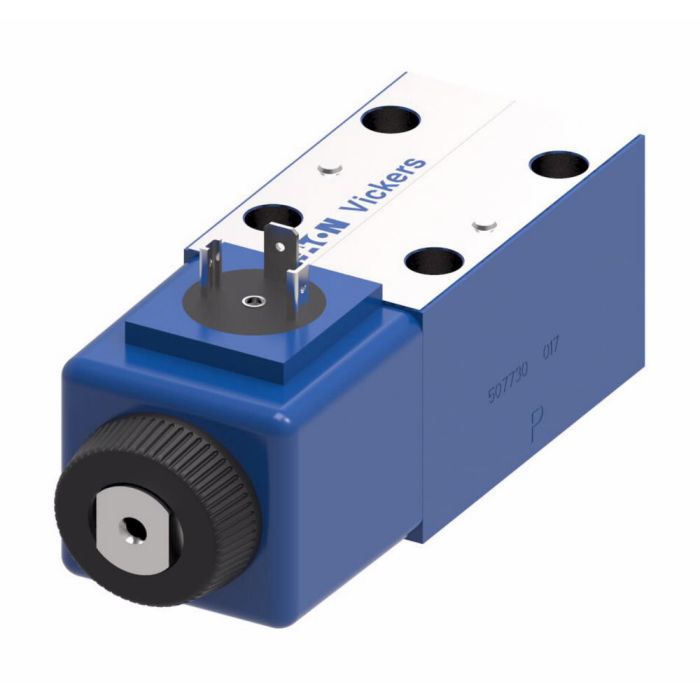

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 2-Position, Spring Offset End-to-End, Spool / Spring Code 2A, 110VAC50Hz 120VAC60Hz DIN 43650 Coil.

Ask A Question

Description & Features

Designed for subplate and manifold mounting to the ISO 4401 / NFPA D03 port interface, the DG4V-3(S) Series D03 Solenoid Valve is a single-stage, 4-way, 2-position directional control valve with spring offset end-to-end configuration and Spool/Spring Code 2A. The gray iron body is fitted with Buna-N seals and rated to a maximum operating pressure of 5,075 psi, with pressures above 3,000 psi requiring a steel subplate or manifold.

The 110VAC/50Hz – 120VAC/60Hz dual-frequency DIN 43650 coil draws 30 watts and supports coil replacement with the valve in place. Standard performance flow capacity reaches 7.5 GPM for AC coils, with high-performance configurations supporting up to 16 GPM. The valve accommodates mineral oil across a fluid temperature range of -4°F to 158°F. Suited for use in machine tool, press, primary metal, marine/offshore, die casting, turbine control, and test and simulation environments, this valve is well established across a broad range of industrial hydraulic circuits requiring reliable directional control.

SKU: 02-109632

Supplier Part Number (MPN): 02-109632

Alternate Part Numbers: C1AC44, DG4V3S2AMUB560

Specifications

Actuation Identification
Solenoid B
Application
Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body Material
Gray Iron
Check Valve
No
Coil Rating
110VAC50Hz 120VAC60Hz
Coil Type
DIN 43650
Design Code
60
Diode
No
Features
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
Fluid Cleanliness
19/17/14 micron
Interface
ISO/DIS 4401-AB-03 D03
Leakage
Standard
Manual Override
Plain
Manual Override Option
No
Performance
Standard
Reducer Module
No
Seal Material
Buna-N
Special Features
None
Spool Center Condition
B Port End
Spool Monitor Switch
None
Spring Arrangement
A
Stage
Single Stage
Supplier Part Number
02-109632
Switch Connector
No
Tank Port Rating
100
Type
STD
Valve Mount Type
Subplate/manifold mounted
Wattage
30
Product Weight
3.30 lbs
Alternate Part Numbers
Alternate Part Number C1AC44, Alternate Part Number DG4V3S2AMUB560
