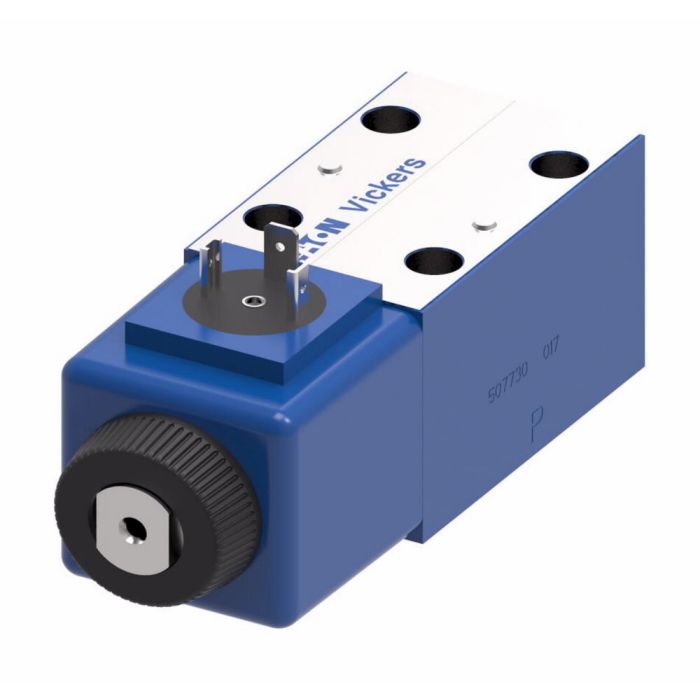

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 2-Position, Spring Offset End-to-End, Spool / Spring Code 2A, 220VAC50Hz 240VAC60Hz DIN 43650 Coil.

Rated to 5,075 psi maximum operating pressure, this gray iron, subplate/manifold-mounted directional control valve is built for demanding industrial hydraulic circuits across machine tool, press, marine/offshore, die casting, and turbine control applications. The DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 2-Position, Spring Offset End-to-End, Spool / Spring Code 2A, 220VAC50Hz 240VAC60Hz DIN 43650 Coil conforms to ISO 4401 Size 03 and NFPA D03 port interfaces, ensuring compatibility with industry-standard surfaces.

Solenoid actuation is at the B port end, with a plain manual override and Buna-N seals standard. The DIN 43650 coil operates at 220VAC/50Hz and 240VAC/60Hz with a 30-watt rating and a response time of 18–32 milliseconds. Flow capacity reaches 16 GPM under high-performance conditions, with all ports blocked during transient shift conditions. The fluid temperature range extends to 158°F with mineral oil. Note that pressures above 3,000 psi require a steel subplate or manifold.

SKU: 02-109642

Supplier Part Number (MPN): 02-109642

Alternate Part Numbers: C1JP80, DG4V3S2AMUD560
