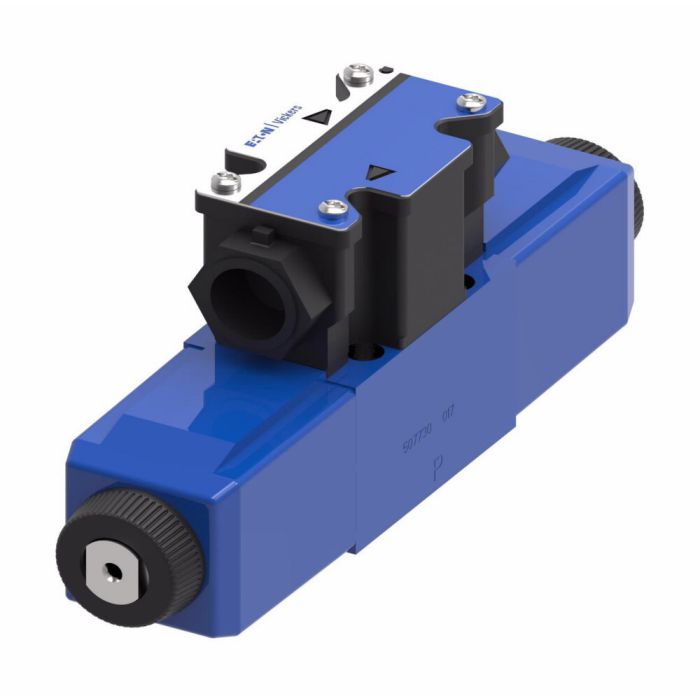

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, STD Performance, 12VDC Lead wires Conduit box Coil.

Ask A Question

Description & Features

Designed for subplate and manifold mounting to the ISO 4401 / NFPA D03 interface, the DG4V-3(S) Series D03 Solenoid Valve is a single-stage, 4-way, 3-position directional control valve with spring-centered, closed-center configuration. It operates on a 12VDC coil with lead wires and conduit box termination, drawing 30 watts, and is suited to standard-performance hydraulic circuits across a wide range of industrial environments.

The gray iron body is sealed with Buna-N seals, with a fluid temperature range of -4°F to 158°F for mineral oil. Maximum operating pressure is 5,075 psi, though pressures above 3,000 psi require a steel subplate or manifold. At standard performance, DC coils support flow up to 8 GPM. Typical applications include machine tool, press, die casting and foundry, marine and offshore, primary metal, and turbine control systems. The coil can be replaced with the valve in place, and a plain manual override is included.

SKU: 02-109826

Supplier Part Number (MPN): 02-109826

Alternate Part Numbers: C1AC49, DG4V3S2CMFWG560

Specifications

Application
Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body Material
Gray Iron
Check Valve
No
Coil Rating
12VDC
Coil Type
Lead wires Conduit box
Design Code
60
Diode
No
Brand
Danfoss (Power Solutions II LLC)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
Fluid Cleanliness
19/17/14 micron
Interface
ISO/DIS 4401-AB-03 D03
Leakage
Standard
Manual Override
Plain
Manual Override Option
No
Performance
Standard
Reducer Module
No
Seal Material
Buna-N
Special Features
None
Spool Center Condition
A Port and Double Offset sensing switch on B Port
Spool Monitor Switch
None
Spring Arrangement
C
Stage
Single Stage
Supplier Part Number
02-109826
Switch Connector
No
Tank Port Rating
100
Type
STD
Valve Mount Type
Subplate/manifold mounted
Wattage
30
Product Weight
4.83 lbs
Alternate Part Numbers
Alternate Part Number C1AC49, Alternate Part Number DG4V3S2CMFWG560

Related Documents

Product Questions & Answers (4)

Question by: Dale J on Mar 7, 2026, 8:58 AM
Trying to swap out a bad valve, is this one the D03 subplate or manifold mount style?
Answer by: Customer Support on Mar 9, 2026, 12:18 PM
Fit-wise, it's designed as a subplate or manifold mount valve in NFPA size D03, meaning it's to be mounted on a D03 pattern subplate or manifold, not an inline style.
Question by: Melvin P on Dec 22, 2025, 2:13 PM
Closed center and spring centered, what does that get me in plain terms when the coil ain’t powered?
Answer by: Customer Support on Dec 24, 2025, 10:21 AM
In layman's terms, the valve is spring-centered in a closed center position. So when neither solenoid is powered, it springs back to center, blocking all flow paths through the valve.
Question by: Neal G on Sep 25, 2025, 10:56 AM
For wiring, am i dealing with a plug or loose leads on this 12VDC coil?
Answer by: Customer Support on Sep 27, 2025, 9:33 AM
The wiring consists of 12VDC lead wires, and the coil setup uses a conduit box design. So, you'll be landing leads in a conduit box instead of using a DIN plug connector.
Question by: Tony C on Apr 19, 2025, 1:30 PM
Got a machine thats needing a new solenoid valve, is this DG4V-3 one a direct fit for NFPA D03 setups?
Answer by: Customer Support on Apr 20, 2025, 2:52 PM
Definitely a match for standard NFPA D03 subplate or manifold mounts since it's built precisely for that kind of hydraulic system.
