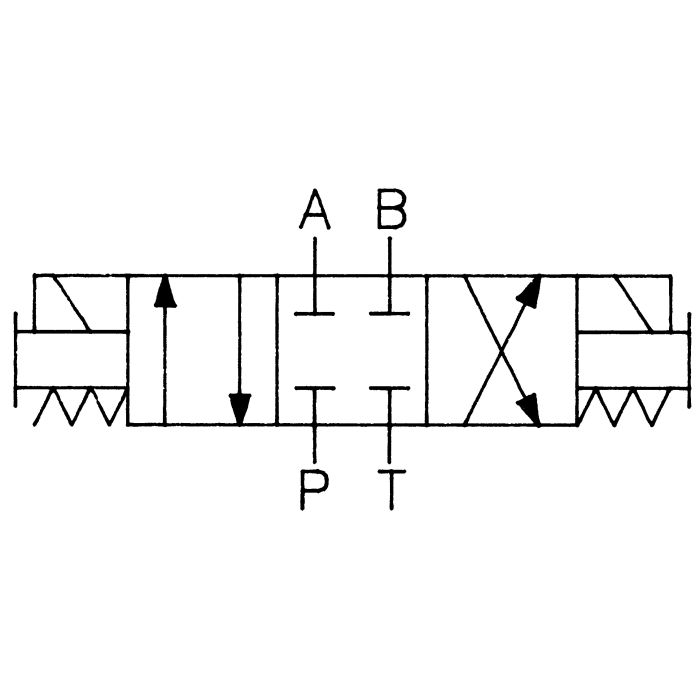

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, STD Performance, 12VDC DIN 43650 Coil. Water-resistant override

Description & Features

This DG4V-3(S) Series D03 solenoid valve is a 4-way, 3-position, spring-centered valve with a closed center design and standard performance. This subplate/manifold mount NFPA size D03 valve is suitable for various applications, including die casting and foundry, machine tools, marine/offshore, presses, primary metal processing, paper mills, test equipment and simulation, and turbine control (wind, steam, and water).

This Eaton DG4V-3(S) Series valve offers high reliability, high pressure and flow capability, and low pressure drops. It features Buna-N seals and a water-resistant manual override. This model utilizes a 12VDC DIN 43650 coil with a 30-watt rating. It is designed for a maximum operating pressure of 5075 psi and a fluid temperature range of -4°F to 158°F with mineral oil or +50°F to 129°F with water-based fluids.

SKU: 02-109943

Supplier Part Number (MPN): 02-109943

Alternate Part Numbers: C1LA85

Specifications

Application Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)	Check Valve No	Coil Rating 12VDC	Coil Type DIN 43650	Diode No	Features Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications	Manual Override Option No	Seal Material Buna-N	Special Features None	Supplier Part Number 02-109943	Switch Connector No	Type STD	Wattage 30	Product Weight 4.80 lbs	Alternate Part Numbers Alternate Part Number C1LA85, Alternate Part Number MINO-00900H72379

Product Questions & Answers (1)

Question by: Brent D on Sep 6, 2025, 11:51 AM

What kind of stuff can I use this valve on?

Answer by: Customer Support on Sep 7, 2025, 1:29 PM

This D03 solenoid valve works in several applications. That includes die casting and foundry, machine tools, marine/offshore, presses, primary metal processing, paper mills, test equipment and simulation, and even turbine control for wind, steam, and water.
