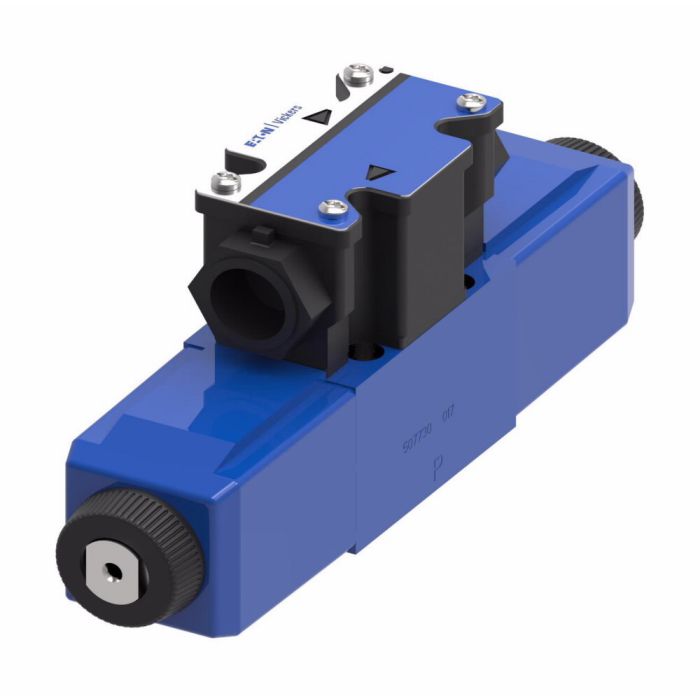

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Tandem Center, HP Performance, 110VAC50Hz 120VAC60Hz Lead wires Conduit box Coil.

Description & Features

The DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve by Danfoss offers exceptional high-pressure and flow capability. Featuring three- or four-way directional control, this model is easily mountable on industry-standard surfaces. Ideal for applications such as die casting & foundry, machine tool, marine/offshore, and turbine control, it performs efficiently with a coil rating of 110VAC50Hz and 120VAC60Hz.

Maximum operating pressure reaches up to 5075 psi, with a fluid temperature range of -4deg;F to 158deg;F for mineral oil. The solenoid valve is equipped with a scratch-proof manual override and Vitonreg; seals, ensuring durability. Fluid cleanliness is maintained at 19/17/14 micron, making it suitable for various high-demand industrial settings.

High-performance AC coils manage up to 9 GPM, while DC coils handle up to 12 GPM. Gray iron body material and ISO 4401, NFPA D03 port interface add robustness to its construction. This model comes with HP performance, allowing consistent reliability in challenging environments.

Model Number: DG4V-3-8C-VM-FW-B6-61

Supplier Part Number: 02-145158

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid	Body Material Iron	Check Valve Without Check Valve	Coil Type Lead Wires Conduit Box	Color Gray	Design 61 Series	Dimensions 7.87 in L x 1.8 in W x 3.57 in H	Diode Without Diode	Domestic/Import Domestic	Electrical Connection 1/2 in NPT Housing Flying Leads	Grp High Performance 9 gpm AC Coil, 12 gpm DC Coil	Grp Standard Performance 3 gpm AC Coil, 2.5 gpm DC Coil	grp Transient Conditions During Shift P and A Restricted Opening to T, B Blocked, P and B Restricted Opening to T, A Blocked	Indicator Light Without Indicator Light	Leakage Standard	Manual Override Plain	Media Petroleum Oil	Number of Stages 1	Performance High	Reducer Module Without Reducer Module	Seal Material FKM	Segment Code A	Series DG4V-3 61 Series	Sg Dg4v 3 -4 to 122 deg F (Dual Frequency Coil at 107% Voltage), -4 to 104 deg F (Dual Frequency Coil at 110% Voltage)	Sg Dg4v 3s 4 to 149 deg F (Dual Frequency Coil at 110% Voltage)	Sg Features High Reliability. High Pressure and Flow Capability. Low Pressure Drops. FKM Seal. Scratch-Proof Manual Override. Coil Change With Valve in Place. ISO 4401 Size 03, NFPA D03 Port Interface	Sg Fluid Temperature Range -4 to 158 deg F Mineral Oil, 50 to 129 deg F Water Based Fluids	Sg Maximum Flow Rating Dependent On Spool/Spring Combination and Coil	Sg Mounting Considerations Detented Models Should Mount with Longitudinal Axis Horizontal. Other Models May be Mounted in Any Position	Solenoid Energizing ID Solenoid A at Port A/Solenoid B at Port B	Spool Center Condition A Port and Double Offset Sensing Switch on B Port	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 8	Spring Arrangement Spring Centered	Surge Suppressor Damper Without Surge Suppressor Damper	Switch Connector Without Switch Connector	Valve Mount Type Subplate/Manifold

Similar Products

Model Number	Part Number	Type	Coil Rating	Coil Type	Features	Price	Action
DG4V-3S-8C-VM-U-D5-61 DG4V-3(S) Series D03 Solenoid Valve	02-144939	STD	220VAC50Hz 240VAC60Hz	DIN 43650	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
DG4V-3S-8C-VM-U-G5-61 DG4V-3(S) Series D03 Solenoid Valve	02-145190	STD	12VDC	DIN 43650

Product Questions & Answers (3)

Question by: Howard H on Sep 12, 2025, 8:08 PM

We're running this on a press application at 4,500 psi. Does it need a steel subplate at that pressure or will a standard one hold up?

Answer by: Customer Support on Sep 14, 2025, 6:50 AM

Anything over 3,000 psi does require a steel subplate or manifold with this valve. At 4,500 psi you're well past that threshold, so a standard subplate wouldn't be the right call. The valve itself is rated up to 5,075 psi, so the valve body isn't the limiting factor there, just the mounting surface beneath it.

Question by: Kirk C on Feb 20, 2026, 2:48 PM

got a D03 subplate setup already, is this one gonna bolt up or am i gonna be drilling and re-hydraulic connections

Answer by: Customer Support on Feb 22, 2026, 8:10 AM

Fit is based on the ISO 4401 Size 03, NFPA D03 port interface and a subplate or manifold mount style, so it’s meant to mount on industry standard D03 surfaces without custom drilling or re-hydraulic connections.

Question by: Kent T on Oct 8, 2025, 9:48 AM

Can this valve handle different types of hydraulic fluids, or is it strictly for mineral oil?

Answer by: Customer Support on Oct 10, 2025, 7:57 AM

This valve is rated to handle mineral oil within a fluid temperature range of -4°F to 158°F. It can also handle water-based fluids, but the temperature range shifts to +50°F to 129°F.
