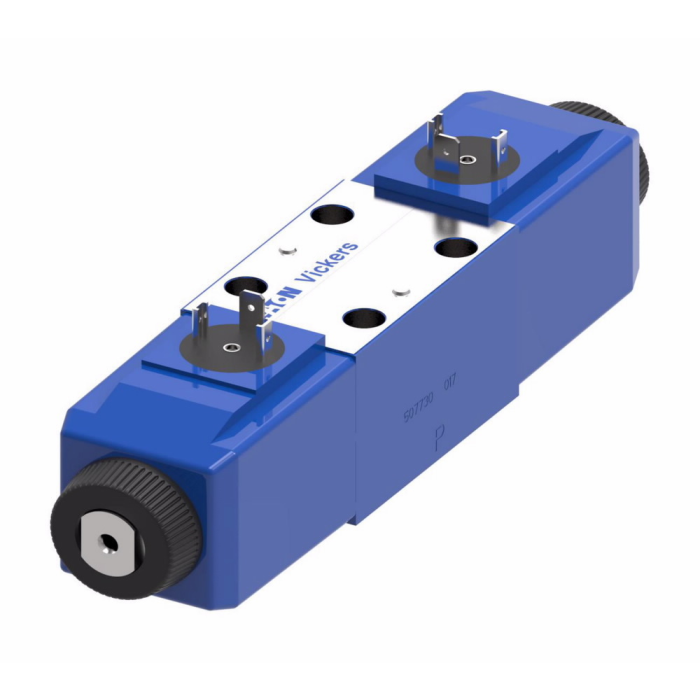

main product photo

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Tandem Center, STD Performance, 12VDC DIN 43650 Coil.

Ask A Question

Description & Features

This subplate/manifold mounted NFPA Size D03 solenoid valve is part of the DG4V-3(S) Series from Eaton and features a 4-way, 3-position configuration with a spring-centered, tandem center. Designed for standard performance, it operates on a 12VDC coil with a DIN 43650 connector.

The valve body is constructed from durable gray iron, ensuring robust performance in demanding hydraulic applications. Viton seals enhance reliability, and a scratch-proof manual override adds convenience. This valve is designed to be mounted on a subplate or manifold.

This model is designed for fluid cleanliness levels of 19/17/14 micron and handles a maximum operating pressure of 5075 psi. It is suitable for fluid temperatures ranging from -4°F to 158°F when using mineral oil.

SKU: 02-145190

Supplier Part Number (MPN): 02-145190

Alternate Part Numbers: C1AC97, DG4V3S8CVMUG561, DSDG4V3S8CVMUG561

Specifications

Body Material
Gray Iron
Check Valve
No
Coil Rating
12VDC
Coil Type
DIN 43650
Diode
No
Fluid Cleanliness
19/17/14 micron
Interface
ISO/DIS 4401-AB-03 D03
Leakage
Standard
Manual Override
Plain
Manual Override Option
No
Minimum Working Temperature
-20
Performance
Standard
Reducer Module
No
Spool Center Condition
A Port and Double Offset sensing switch on B Port
Spool Monitor Switch
None
Spring Arrangement
C
Stage
Single Stage
Supplier Part Number
02-145190
Switch Connector
No
Type
STD
Valve Mount Type
Subplate/manifold mounted
Wattage
30
Product Weight
4.80 lbs
Alternate Part Numbers
Alternate Part Number C1AC97, Alternate Part Number DG4V3S8CVMUG561, Alternate Part Number DSDG4V3S8CVMUG561

Related Documents

Similar Products

Model Number Part Number Type Coil Rating Coil Type Features Price Action
DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Tandem Center, STD Performance, 220VAC50Hz 240VAC60Hz DIN 43650 Coil.

DG4V-3S-8C-VM-U-D5-61 DG4V-3(S) Series D03 Solenoid Valve

02-144939

STD

220VAC50Hz 240VAC60Hz

DIN 43650

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Tandem Center, HP Performance, 110VAC50Hz 120VAC60Hz Lead wires Conduit box Coil.

DG4V-3-8C-VM-FW-B6-61 DG4V-3(S) Series D03 Solenoid Valve

02-145158

HP

110VAC50Hz 120VAC60Hz

Lead wires Conduit box

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Tandem Center, STD Performance, 12VDC DIN 43650 Coil.

DG4V-3S-8C-VM-U-G5-61 DG4V-3(S) Series D03 Solenoid Valve

02-145190

STD

12VDC

DIN 43650

Product Questions & Answers (1)

Question by: Chad R on Apr 17, 2025, 7:03 PM
How clean does the hydraulic fluid need to be for this valve?
Answer by: Customer Support on Apr 19, 2025, 1:01 PM
It's designed for a fluid cleanliness level of 19/17/14 micron, so you'll want to keep that in mind for your system.
