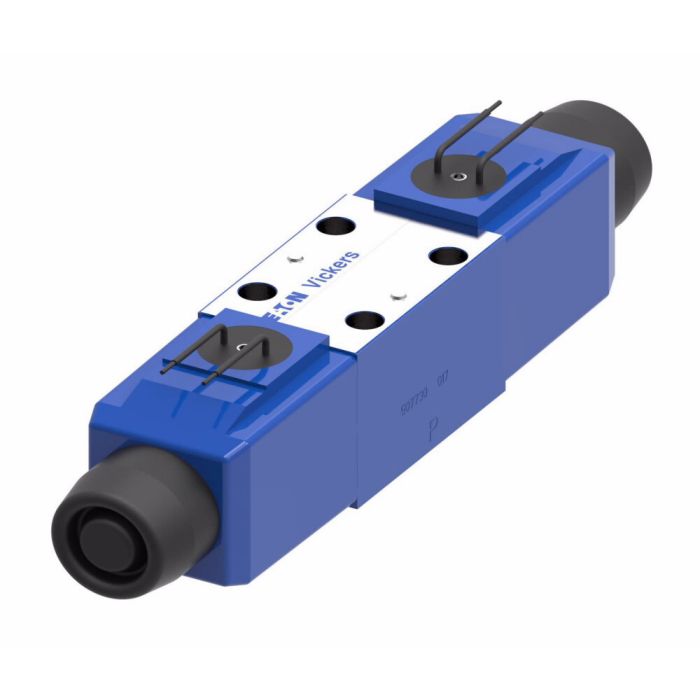

main product photo

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 2-Position, Spring Offset End-to-End, Spool / Spring Code 2A, 12VDC Lead wires Coil. Packard Weatherpak Connectors

Ask A Question

Description & Features

Elevate your fluid control with the DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 2-Position, Spring Offset End-to-End, Spool / Spring Code 2A, 12VDC Lead wires Coil. Packard Weatherpak Connectors by Danfoss (Power Solutions II LLC). Engineered for demanding applications such as die casting, machine tool operations, and turbine control.

This valve showcases high reliability and performance with 12VDC coil rating and ISO 4401 Size 03, NFPA D03 port interface. It ensures optimal fluid cleanliness with 19/17/14 micron standard.

Mounting this robust solenoid valve is simplified with industry-standard subplate/manifold mounts, along with a gray iron body material for enhanced durability. Ideal for high-pressure systems with a maximum operating pressure of 5075 psi; note that pressures above 3000 psi necessitate a steel subplate or manifold.

Built for longevity, it includes features like Vitonreg; seals, low pressure drops, scratch-proof manual override, and allows coil changes with the valve in place. Fluid temperatures range from -4deg;F to 158deg;F for mineral oils, suitable for varied industrial environments.

MPN: DG4V-3S-2A-M-KU-P1-G7-60-EN490

Supplier Part Number: 02-397418

Specifications

Actuation Identification
Solenoid B
Application
Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body Material
Gray Iron
Build Orientation
Solenoid at B Port End
Check Valve
No
Coil Rating
12VDC
Coil Type
Lead wires
Design Code
60
Diode
No
Brand
Danfoss (Power Solutions II LLC)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
Fluid Cleanliness
19/17/14 micron
Interface
ISO/DIS 4401-AB-03 D03
Leakage
Standard
Manual Override
Plain
Manual Override Option
No
Performance
Standard
Reducer Module
No
Response Time
40-60 Milliseconds
Seal Material
Buna-N
Special Features
None
Spool Center Condition
B Port End
Spool Monitor Switch
None
Spring Arrangement
A
Stage
Single Stage
Supplier Part Number
02-397418
Switch Connector
No
Tank Port Rating
210
Type
STD
Valve Mount Type
Subplate/manifold mounted
Wattage
30
Product Weight
3.30 lbs
Alternate Part Numbers
Alternate Part Number C1MX21

Related Documents

Similar Products

Model Number Part Number Type Coil Rating Coil Type Features Price Action
DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 2-Position, Spring Offset End-to-End, Spool / Spring Code 2A, 12VDC Lead wires Coil. Packard Weatherpak Connectors

DG4V-3S-2A-M-KU-P1-G7-60-EN490 DG4V-3(S) Series D03 Solenoid Valve

02-397418

STD

12VDC

Lead wires

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 2-Position, Spring Offset End-to-End, Spool / Spring Code 2A, 24VDC DIN 43650 Coil.

DG4V-3-2A-M-U-H7-60 DG4V-3(S) Series D03 Solenoid Valve

529762

HP

24VDC

DIN 43650

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

Product Questions & Answers (1)

Question by: Chad H on Sep 24, 2025, 6:48 AM
Will this valve work alright in a machine tool setup?
Answer by: Customer Support on Sep 25, 2025, 3:50 PM
Absolutely, this valve is used in machine tool applications, along with die casting, marine/offshore, and turbine control.
