main product photo

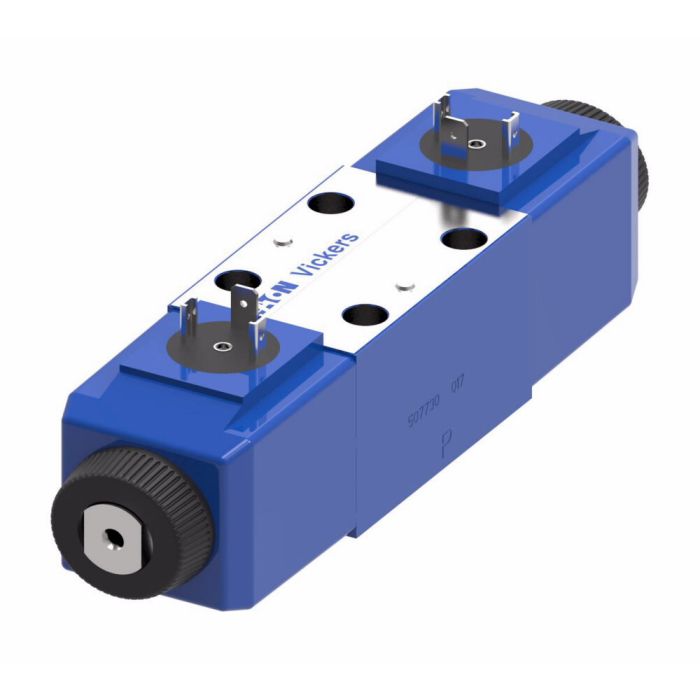

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, HP Performance, 110VAC50Hz 120VAC60Hz DIN 43650 Coil.

Ask A Question

Description & Features

The DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve 4-Way 3-Position Spring Centered Closed Center HP Performance 110VAC50Hz 120VAC60Hz DIN 43650 Coil is designed for high reliability and fluid control in industrial settings. This flow control hydraulic valve is suitable for die casting & foundry machine tool marine/offshore press primary metal paper test equipment & simulation and turbine control applications.

Constructed from gray iron it features vitonreg; seals and a scratch-proof manual override ensuring durability and consistent performance. The valve's three- or four-way directional control and easy mounting on industry-standard surfaces make it versatile for a multitude of configurations.

Performance capabilities include high pressure & flow with low pressure drops regardless of transient conditions. The coil rating of 110VAC50Hz 120VAC60Hz complemented by the DIN 43650 coil type assures efficient operation.

With an interface of ISO/DIS 4401-AB-03 D03 and a tank port rating of 210 it supports fluid cleanliness up to 19/17/14 micron. The product is built to withstand maximum operating pressures up to 5075 psi though pressures over 3000 psi require a steel subplate or manifold.

The valve's operating temperature ranges from -4deg;F to 158deg;F suitable for various fluid types. This product meets the performance specifications required in demanding industrial environments.

MPN: DG4V-3-2C-M-U-B6-60

Supplier Part Number: 859161

Specifications

Application
Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body Material
Gray Iron
Check Valve
No
Coil Rating
110VAC50Hz 120VAC60Hz
Coil Type
DIN 43650
Design Code
60
Diode
No
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
Fluid Cleanliness
19/17/14 micron
Interface
ISO/DIS 4401-AB-03 D03
Leakage
Standard
Manual Override
Plain
Manual Override Option
No
Performance
Standard
Reducer Module
No
Seal Material
Buna-N
Special Features
None
Spool Center Condition
A Port and Double Offset sensing switch on B Port
Spool Monitor Switch
None
Spring Arrangement
C
Stage
Single Stage
Supplier Part Number
859161
Switch Connector
No
Tank Port Rating
210
Type
HP
Valve Mount Type
Subplate/manifold mounted
Wattage
20
Product Weight
4.13 lbs
Alternate Part Numbers
Alternate Part Number C1KD96, Alternate Part Number DG4V32CMUB660, Alternate Part Number MINO-00900H43231

Related Documents

Similar Products

Model Number Part Number Type Coil Rating Coil Type Features Price Action
DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, HP Performance, 24VDC DIN 43650 Coil.

DG4V-3-2C-M-U-H7-60 DG4V-3(S) Series D03 Solenoid Valve

529760

HP

24VDC

DIN 43650

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, HP Performance, 110VAC50Hz 120VAC60Hz DIN 43650 Coil.

DG4V-3-2C-M-U-B6-60 DG4V-3(S) Series D03 Solenoid Valve

859161

HP

110VAC50Hz 120VAC60Hz

DIN 43650

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, HP Performance, 220VAC50Hz 240VAC60Hz DIN 43650 Coil.

DG4V-3-2C-M-U-D6-60 DG4V-3(S) Series D03 Solenoid Valve

859172

HP

220VAC50Hz 240VAC60Hz

DIN 43650

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, STD Performance, 24VDC DIN 43650 Coil.

DG4V-3S-2C-M-U-H5-60 DG4V-3(S) Series D03 Solenoid Valve

02-109025

STD

24VDC

DIN 43650

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

Product Questions & Answers (2)

Question by: Carl W on Aug 19, 2025, 9:43 AM
Hey, will this work on my die casting machine?
Answer by: Customer Support on Aug 21, 2025, 6:33 AM
This valve is definitely suitable for die casting and foundry applications, along with machine tools, marine/offshore setups, presses, primary metal, paper, test equipment/simulation, and turbine control.
Question by: Kirk H on Jul 10, 2025, 9:21 PM
running this on a press that tops out around 3,200 psi, do I need anything special for the subplate?
Answer by: Customer Support on Jul 12, 2025, 1:24 PM
At pressures over 3,000 psi, a steel subplate or manifold is required. Gray iron subplates are not rated for that range with this valve. As long as your subplate is steel and rated appropriately, you're good to go at 3,200 psi. The valve itself handles up to 5,075 psi max operating pressure, so the valve body won't be your limiting factor.
