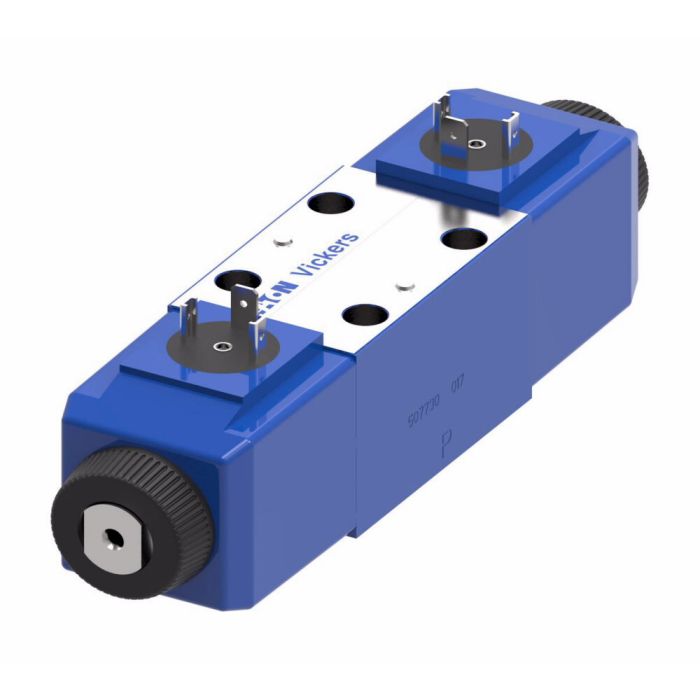

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, HP Performance, 220VAC50Hz 240VAC60Hz DIN 43650 Coil.

Description & Features

The DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve 4-Way 3-Position Spring Centered Closed Center HP Performance 220VAC50Hz 240VAC60Hz DIN 43650 Coil is engineered with high reliability and durability in industrial applications. Built with gray iron body material it features a high-pressure capacity of up to 5075 psi and fluid cleanliness rating of 19/17/14 micron.

The valve interface follows ISO/DIS 4401-AB-03 D03 standards ensuring compatibility with industry-standard surfaces. Its HP performance AC coils support a maximum flow rate of 16 GPM while DC coils provide 21 GPM.

With a response time of 15-23 milliseconds and AC coils rated at 220VAC50Hz or 240VAC60Hz this solenoid valve is suitable for environments ranging from -4deg;F to 158deg;F. The valversquo;s tank port is rated at 210 and it includes a plain manual override for additional control.

Designed for use in sectors such as die casting & foundry marine/offshore and turbine control this valve offers three- or four-way directional control enhancing its versatility across different applications. It should be noted that pressures over 3000 PSI will require a steel subplate or manifold.

Model Number: DG4V-3-2C-M-U-D6-60

Supplier Part Number: 859172

Specifications

Actuation Identification Solenoid A, Solenoid B	Application Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)	Body Material Gray Iron	Build Orientation Solenoid at A Port End, Solenoid at B Port End	Check Valve No	Coil Rating 220VAC50Hz 240VAC60Hz	Coil Type DIN 43650	Design Code 60	Diode No	Brand Danfoss (Power Solutions II LLC)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications	Fluid Cleanliness 19/17/14 micron	Interface ISO/DIS 4401-AB-03 D03	Leakage Standard	Manual Override Plain	Manual Override Option No	Performance High Performance	Reducer Module No	Response Time 15-23 Milliseconds	Seal Material Buna-N	Special Features None	Spool Monitor Switch None	Spring Arrangement C	Stage Single Stage	Supplier Part Number 859172	Switch Connector No	Tank Port Rating 210	Type HP	Valve Mount Type Subplate/manifold mounted	Product Weight 4.00 lbs	Alternate Part Numbers Alternate Part Number C1KD98, Alternate Part Number DG4V32CMUD660, Alternate Part Number MINO-00900H07639

Similar Products

Model Number	Part Number	Type	Coil Rating	Coil Type	Features
DG4V-3-2C-M-U-H7-60 DG4V-3(S) Series D03 Solenoid Valve	529760	HP	24VDC	DIN 43650	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
DG4V-3-2C-M-U-B6-60 DG4V-3(S) Series D03 Solenoid Valve	859161	HP	110VAC50Hz 120VAC60Hz	DIN 43650	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
DG4V-3-2C-M-U-D6-60 DG4V-3(S) Series D03 Solenoid Valve	859172	HP	220VAC50Hz 240VAC60Hz	DIN 43650	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
DG4V-3S-2C-M-U-H5-60 DG4V-3(S) Series D03 Solenoid Valve	02-109025	STD	24VDC	DIN 43650	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
