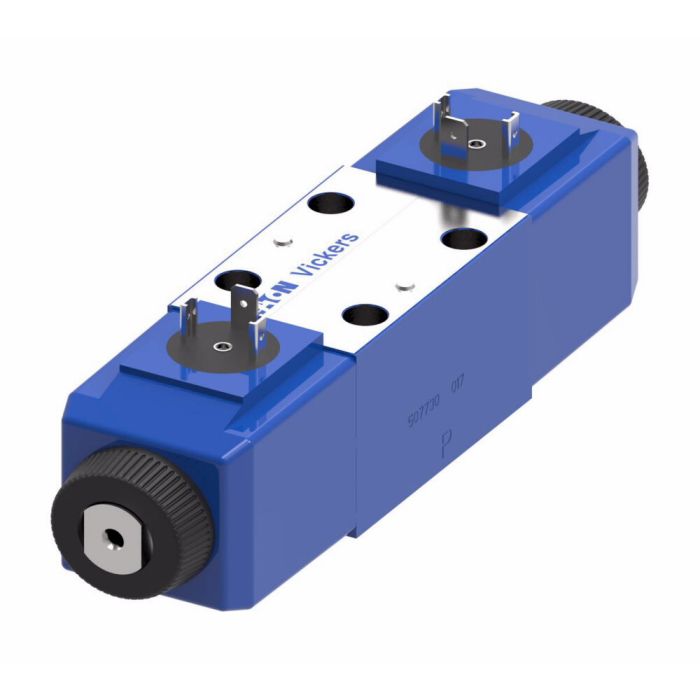

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Float Center, HP Performance, 110VAC50Hz 120VAC60Hz DIN 43650 Coil.

Ask A Question

Description & Features

The DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 solenoid valve offers precise 4-way 3-position control with a spring-centered float center design. Suitable for a variety of industrial applications including die casting machine tools marine and turbine control this valve ensures high performance with its durable gray iron body and standard fluid cleanliness rating.

HP Performance coil ratings of 110VAC50Hz and 120VAC60Hz are compatible with DIN 43650 connectors. The valve is built to ISO/DIS 4401-AB-03 D03 interface standards providing reliable and consistent flow control across different systems. Its AC coils manage flows up to 5 GPM while DC coils can handle up to 9 GPM under high-performance conditions ensuring versatility.

Featuring a low pressure drop design the valve accommodates a maximum operating pressure of 5075 psi. The Buna-N seals and scratch-proof manual override add to its reliability and ease of maintenance. Note that pressures exceeding 3000 psi require a steel subplate or manifold. Its fluid temperature range varies between -4deg;F to 158deg;F for mineral oils and +50deg;F to 129deg;F for water-based fluids.

The valve includes no integrated check or reducer modules but is easily mountable on industry-standard surfaces. Manual override is plain and transient conditions during shift are managed with precision to ensure operational integrity.

Model Number: DG4V-3-6C-M-U-B6-60

Supplier Part Number: 859176

Specifications

Application
Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)
Body Material
Gray Iron
Check Valve
No
Coil Rating
110VAC50Hz 120VAC60Hz
Coil Type
DIN 43650
Design Code
60
Diode
No
Brand
Danfoss (Power Solutions II LLC)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
Fluid Cleanliness
19/17/14 micron
Interface
ISO/DIS 4401-AB-03 D03
Leakage
Standard
Manual Override
Plain
Manual Override Option
No
Performance
Standard
Reducer Module
No
Seal Material
Buna-N
Special Features
None
Spool Center Condition
A Port and Double Offset sensing switch on B Port
Spool Monitor Switch
None
Spring Arrangement
C
Stage
Single Stage
Supplier Part Number
859176
Switch Connector
No
Tank Port Rating
210
Type
HP
Valve Mount Type
Subplate/manifold mounted
Wattage
20
Product Weight
15.00 lbs
Alternate Part Numbers
Alternate Part Number C1KD99, Alternate Part Number DG4V36CMUB660

Related Documents

Similar Products

Model Number Part Number Type Coil Rating Coil Type Features Price Action
DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Float Center, HP Performance, 24VDC DIN 43650 Coil.

DG4V-3-6C-M-U-H7-60 DG4V-3(S) Series D03 Solenoid Valve

565465

HP

24VDC

DIN 43650

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valve, 4-Way, 3-Position, Spring Centered, Float Center, HP Performance, 110VAC50Hz 120VAC60Hz DIN 43650 Coil.

DG4V-3-6C-M-U-B6-60 DG4V-3(S) Series D03 Solenoid Valve

859176

HP

110VAC50Hz 120VAC60Hz

DIN 43650

Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

Product Questions & Answers (3)

Question by: Floyd P on Jul 2, 2025, 1:03 PM
Got a question about the float center position on this valve - what exactly happens when neither solenoid is energized?
Answer by: Customer Support on Jul 4, 2025, 6:17 AM
When both solenoids are off, the valve sits in its spring-centered position with what's called a float center configuration. In this setup, all four ports become isolated from each other, which means your cylinder or motor can move freely without hydraulic restriction. It's particularly useful in applications where you need the actuator to "coast" or move independently when the valve isn't actively directing flow.
Question by: Diane B on Mar 10, 2025, 7:43 AM
Lookin for a valve to swap out on my setup, is this DG4V-3 one gonna mount right up to a standard NFPA D03 manifold?
Answer by: Customer Support on Mar 11, 2025, 8:41 AM
Fits directly onto subplate or manifold setups built to NFPA D03 specs, with its 4-way, 3-position design handling spring-centered float center operations at high performance levels.
Question by: Tony C on Sep 22, 2025, 1:36 PM
I'm lookin’ to swap out a solenoid valve in our system. Will this DG4V-3(S) series fit a standard NFPA Size D03 mount?
Answer by: Customer Support on Sep 24, 2025, 6:02 AM
Yes, this valve will fit a standard NFPA Size D03 mount as it is specifically designed for subplate/manifold mounting according to that size. Just ensure your system matches the 4-way, 3-position configuration with spring-centered and float center features.
