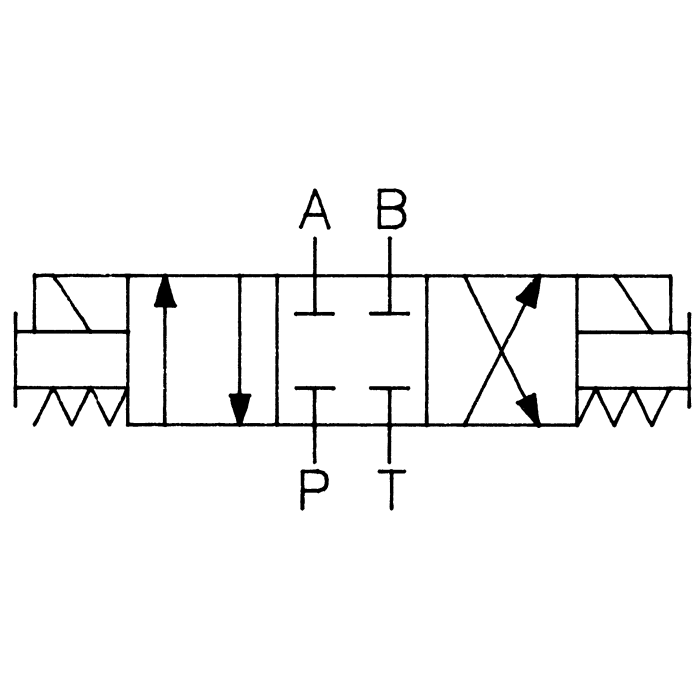

DG4V-3(S) Series Subplate/Manifold Mount NFPA Size D03 Solenoid Valves, 4-Way, 3-Position, Closed Center

Description & Features

High Performance	AC Coils 16 GPM, DC Coils 21 GPM.
Standard Performance	AC Coils 10 GPM, DC Coils 8 GPM.
Transient conditions during shift	P to A: All blocked. P to B: All blocked.

Model Number	Part Number	Type	Coil Rating	Coil Type	Features
DG4V-3-2C-M-U-H7-60 DG4V-3(S) Series D03 Solenoid Valve	529760	HP	24VDC	DIN 43650	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
DG4V-3-2C-M-U-B6-60 DG4V-3(S) Series D03 Solenoid Valve	859161	HP	110VAC50Hz 120VAC60Hz	DIN 43650	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
DG4V-3-2C-M-U-D6-60 DG4V-3(S) Series D03 Solenoid Valve	859172	HP	220VAC50Hz 240VAC60Hz	DIN 43650	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
DG4V-3S-2C-M-U-H5-60 DG4V-3(S) Series D03 Solenoid Valve	02-109025	STD	24VDC	DIN 43650	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications
