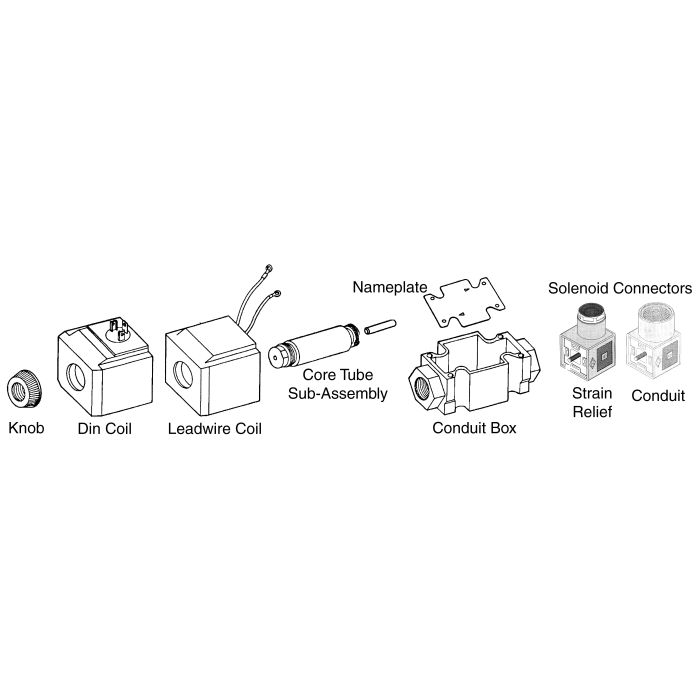

DG4V-3(S) Series Danfoss / Eaton Coils

The DG4V-3(S) Series Danfoss / Eaton Coils are designed for a wide range of demanding mobile and industrial applications including harvesters and refuse haulers. Known for their high reliability and low-pressure drops these coils provide optimal performance in various conditions. They feature internally rectified compact design and continuous duty capabilities ensuring consistent operation.

With a fluid temperature range of -4deg;F to 158deg;F for mineral oil and +50deg;F to 129deg;F for water-based fluids these coils are versatile across different fluid types. The maximum operating pressure of 5075 psi requires careful consideration as pressures exceeding 3000 psi necessitate a steel subplate or manifold. Their high-pressure and flow capabilities along with Vitonreg; seals and a scratch-proof manual override make them a durable choice for rigorous environments.

These valves feature coil changeability with the valve in place ISO 4401 Size 03 and NFPA D03 port interface. They are available in numerous configurations offering flexibility for various setups. For detented models it is recommended to mount with the longitudinal axis horizontal while other models can be mounted in any position.

MPN: 507833

Supplier Part Number: 507833
