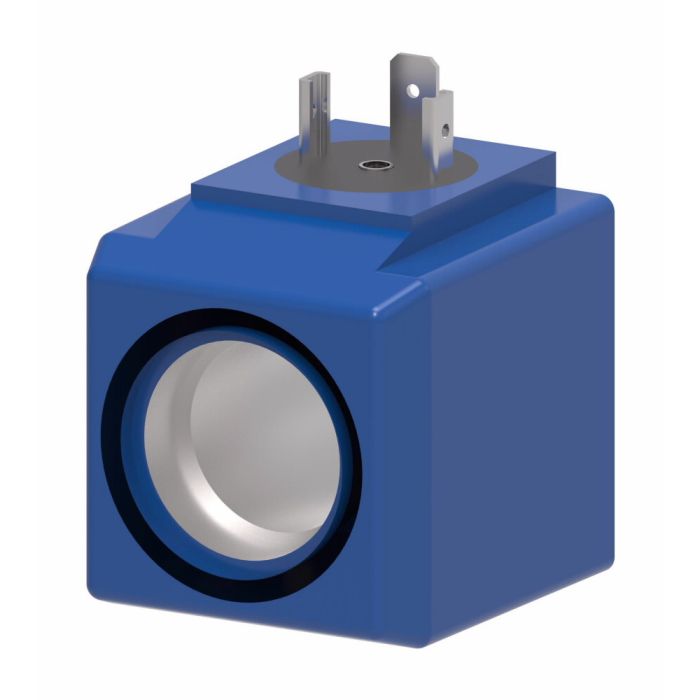

DG4V-3(S) Series Danfoss / Eaton Coils

Ask A Question

Description & Features

Designed for demanding applications such as harvesters refuse haulers and other mobile and industrial uses these solenoid-operated coils offer high pressure and flow capability with low pressure drops.

Built with an internally rectified mechanism these coils ensure continuous duty while maintaining a compact form factor. The fluid temperature range for mineral oil is between -4deg;F and 158deg;F and for water-based fluids it is from 50deg;F to 129deg;F. Maximum operating pressure stands at an impressive 5075 psi making it essential to use a steel subplate or manifold for pressures exceeding 3000 psi.

Notable features include Vitonreg; seals a scratch-proof manual override and the ability to change the coil while the valve is in place. The mounting considerations highlight detent models should be installed with their longitudinal axis horizontal while other models are flexible for any position.

The DG4V-3(S) Series Danfoss / Eaton Coils come with ISO 4401 Size 03 and NFPA D03 port interfaces ensuring broad compatibility. For applications requiring DIN 43650 connectors solenoid connectors are required. Note that a variety of configurations are available and further detailed information can be provided upon request.

MPN: C1BS38

Supplier Part Number: 507834

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Diode
No
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Internally rectified|Compact design|Continuous duty
Manual Override Option
No
Supplier Part Number
507834
Switch Connector
No
Product Weight
0.50 lbs
Alternate Part Numbers
Alternate Part Number C1BS38, Alternate Part Number DG4V3-COIL-DIN-D (220/50-240/60)

Related Documents

Similar Products

Model Number Product Description Price Action
DG4V-3(S) Series Danfoss / Eaton Vickers Spare Part Seal Kit

858995 DG4V-3(S) Series Valve Part

Vickers by Danfoss / Eaton Spare Part Seal Kit

DG4V-3(S) Series Danfoss / Eaton Coils

02-101726 DG4V-3(S) Series Valve Part

Vickers by Danfoss / Eaton Coils

DG4V-3(S) Series Danfoss / Eaton Coils

02-101728 DG4V-3(S) Series Valve Part

Vickers by Danfoss / Eaton Coils

DG4V-3(S) Series Danfoss / Eaton Coils

02-101731 DG4V-3(S) Series Valve Part

Vickers by Danfoss / Eaton Coils

DG4V-3(S) Series Danfoss / Eaton Coils

02-101733 DG4V-3(S) Series Valve Part

Vickers by Danfoss / Eaton Coils

DG4V-3(S) Series Danfoss / Eaton Vickers Spare Part O-Ring

262332 DG4V-3(S) Series Valve Part

Vickers by Danfoss / Eaton Spare Part O-Ring

DG4V-3(S) Series Danfoss / Eaton Coils

507833 DG4V-3(S) Series Valve Part

Vickers by Danfoss / Eaton Coils

DG4V-3(S) Series Danfoss / Eaton Coils

507834 DG4V-3(S) Series Valve Part

Vickers by Danfoss / Eaton Coils

DG4V-3(S) Series Danfoss / Eaton Vickers Spare Part Cover

508113 DG4V-3(S) Series Valve Part

Vickers by Danfoss / Eaton Spare Part Cover

DG4V-3(S) Series Danfoss / Eaton Coils

508172 DG4V-3(S) Series Valve Part

Vickers by Danfoss / Eaton Coils

DG4V-3(S) Series Danfoss / Eaton Coils

508173 DG4V-3(S) Series Valve Part

Vickers by Danfoss / Eaton Coils

DG4V-3(S) Series Danfoss / Eaton Vickers Spare Part Nameplate

694302 DG4V-3(S) Series Valve Part

Vickers by Danfoss / Eaton Spare Part Nameplate

DG4V-3(S) Series Danfoss / Eaton Vickers Spare Part Spool Kit

893240 DG4V-3(S) Series Valve Part

Vickers by Danfoss / Eaton Spare Part Spool Kit

Product Questions & Answers (1)

Question by: Connie R on Apr 15, 2025, 2:10 PM
Running these on a harvester that sees pretty much nonstop use during season. These coils gonna hold up to continuous duty or do they need rest cycles?
Answer by: Customer Support on Apr 17, 2025, 9:42 AM
Continuous duty is built right into these coils, so running them hard through a long harvest season is exactly the kind of work they're rated for. The internally rectified design handles that sustained operation without needing downtime between cycles. Just make sure your fluid temps stay within range. Mineral oil applications are good from -4°F up to 158°F, and that covers most field conditions you'd run into.
