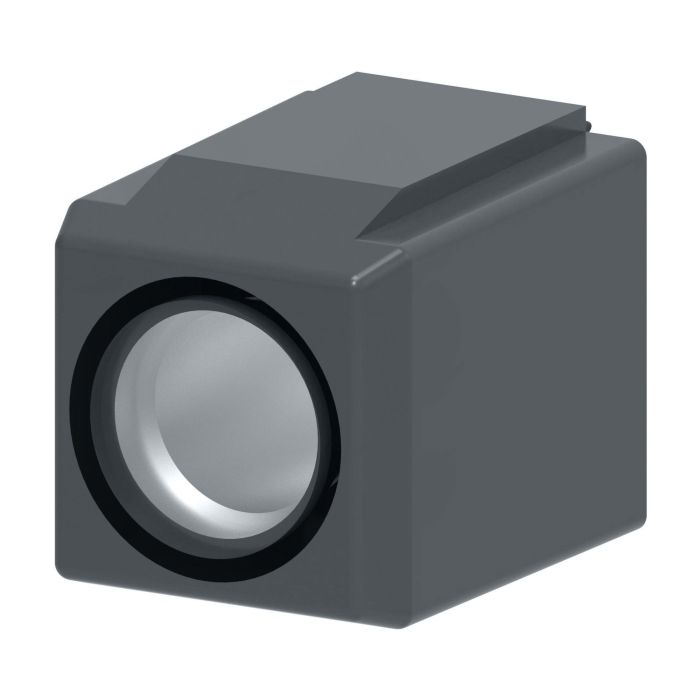

DG4V-3(S) Series Danfoss / Eaton Coils

Vickers by Danfoss/Eaton Coils are designed for use in various industrial and mobile applications including harvesters and refuse haulers. These coils are built for high reliability and performance with features like Vitonreg; seals and a scratch-proof manual override. The DG4V-3(S) series offers a compact design and continuous duty ensuring reliable functionality under demanding conditions.

The DG4V-3 series is capable of withstanding fluid temperatures ranging from -4deg;F to 158deg;F when used with mineral oil and +50deg;F to 129deg;F with water-based fluids. Pressure capabilities reach a maximum of 5075 psi although pressures above 3000 psi necessitate steel subplates or manifolds.

The DG4V-3(S) series includes internally rectified coils and provides maximum flow rates that vary depending on the spool/spring combination and coil. Mounting considerations indicate that detented models should be mounted with the longitudinal axis in a horizontal position whereas other models can be mounted in any position.

These valves are available in multiple configurations and specific models require solenoid connectors as per DIN 43650 connectors.

MPN: {{ecc_mpn}}

Supplier Part Number: 508172
