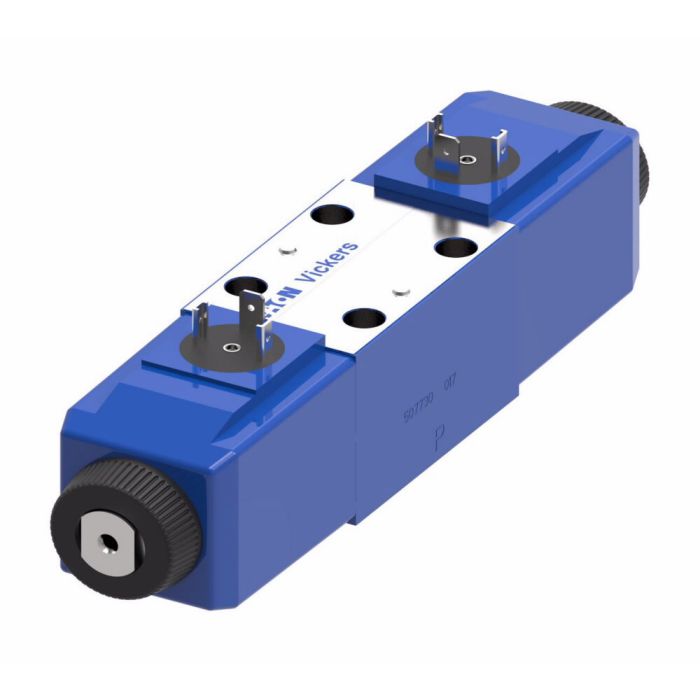

DG4V-3 Series Subplate/Manifold Mount NFPA Size D03 Soft Shift Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, High Performance, 24VDC DIN 43650 Coils.

This flow control hydraulic valve is an essential component in various industrial applications such as die casting, foundry, and marine/offshore environments. The DG4V-3 Series Subplate/Manifold Mount NFPA Size D03 Soft Shift Solenoid Valve, 4-Way, 3-Position, Spring Centered, Closed Center, High Performance, 24VDC DIN 43650 Coils is designed to manage fluid flow with precision and reliability.

Its robust construction using gray iron ensures durability and long life. The soft shift mechanism, characterized by fixed, non-serviceable metering orifices, provides controlled spool shift speed, minimizing coil burnout risks and extending the valve's operational life. The incorporate wet armature design operates quietly without dynamic seal leakage and the molded coils resist moisture and dirt, making it ideal for harsh conditions.

The valve's maximum operating pressure is 5075 PSI for ports P, A, and B, and 3045 PSI for port T when used with petroleum oil, ensuring versatile application under high-pressure conditions. Additionally, the solenoid's build orientation options enhance flexibility in installation. For effective bleeding, applying a minimum of 50 PSI tank pressure and shifting either solenoid is recommended.

MPN: DG4V-3-2C3-M-U-HH7-60

Supplier Part Number: 02-363653
