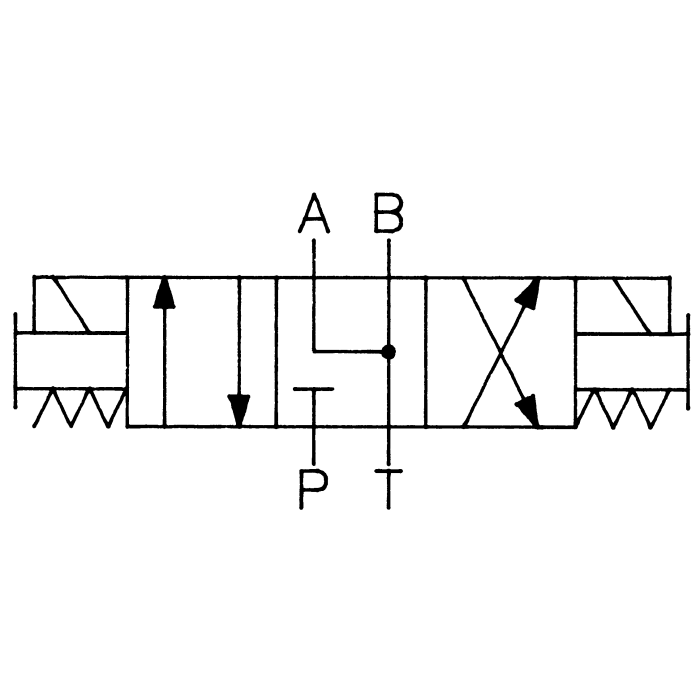

DG4V-3 Series Subplate/Manifold Mount NFPA Size D03 Soft Shift Solenoid Valves, 4-Way, 3-Position, Float Center

Description & Features

Maximum Flow Rates @ 3000 PSI	8 GPM.
Transient conditions during shift	P to A P & A blocked, B open to T. P to B P & B blocked, A open to T.

Model Number	Part Number	Coil Type	Voltage	Features	Price	Action
DG4V-3-6C3-M-U-HH7-60 DG4V-3 Series D03 Soft Shift Solenoid Valve	02-391668	DIN 43650 Coils	24VDC	Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications

Question by: Dwayne S on Jun 16, 2025, 6:11 PM

What kinda pressure can this handle on the main ports, like A and B?

Answer by: Customer Support on Jun 18, 2025, 1:03 PM

Operating pressure on ports A and B can reach up to 5,075 PSI when using petroleum oil.
