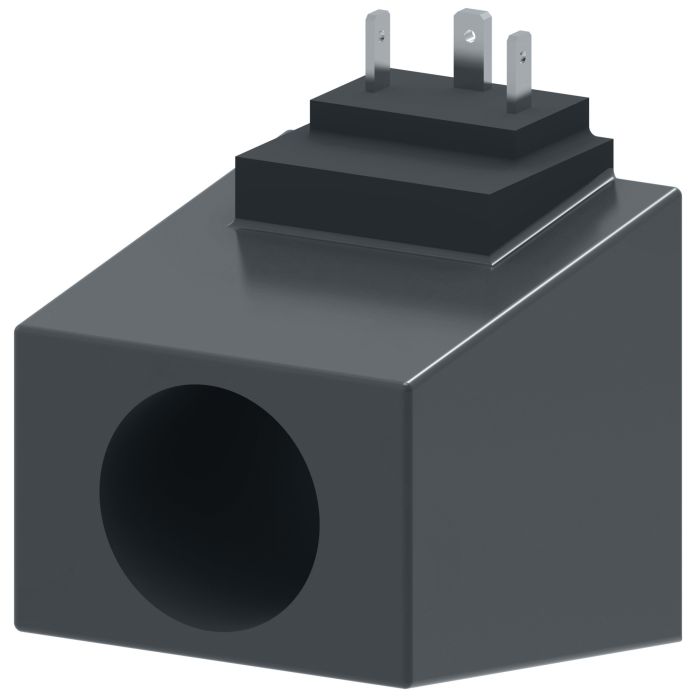

Danfoss / Eaton Coils For DG4V-5 Series Valves

These Danfoss / Eaton Coils For DG4V-5 Series Valves are designed for mobile and industrial applications, including use in harvesters and refuse haulers. They feature an internally rectified design and compact form factor, allowing for continuous duty.

These Eaton Vickers valves include a four-land spool design to facilitate smooth, variable valve response speeds. They can be mounted in any position except detented models, which should mount with the longitudinal axis horizontal. The AC 60Hz valves have an ambient temperature range of -4°F to 104°F, while AC 50Hz valves range from -4°F to 122°F. DC Valves range from -4°F to 158°F, with a fluid temperature range of -4°F to 150°F (158°F extreme range) and fluid viscosity of 70 to 245 SSU (2300 SSU extreme range). Ports P, A & B have a maximum operating pressure of 4500 PSI; Ports T have 1750 PSI for AC solenoids and 2325 PSI for DC solenoids.

SKU: 617499

Supplier Part Number (MPN): 617499

Alternate Part Numbers: C1JR85
