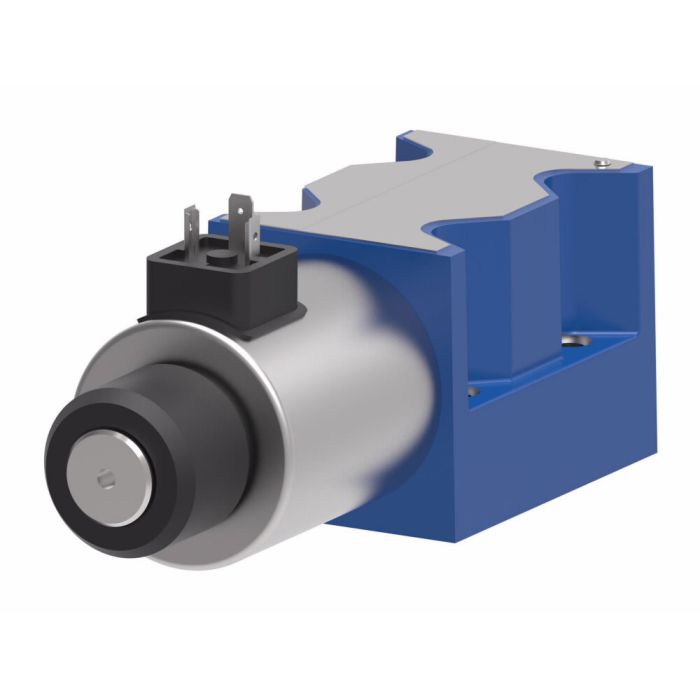

DG4V-5 Series Subplate/Manifold Mount NFPA Size D05 Solenoid Valve, 4-Way, 2-Position, Spring Offset, Up To 115VAC60Hz Coil. Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications

With a maximum operating pressure of 4500 PSI for ports P A and B and the capability to handle up to 25 GPM flow rates at 3000 PSI with both AC and DC coils this solenoid valve ensures high-performance standards. The fluid cleanliness rating of 19/17/14 micron and viscosity range from 70 to 2300 SSU support consistent and reliable valve functions.

The DG4V-5 series valve is well-suited for demanding environments such as die casting machine tools marine and offshore applications. Constructed from durable gray iron and featuring a spring offset design this product meets rigorous performance criteria. Compatibility with ISO4401-05 interface and the simple integration of manual overrides further enhances its usability.

Ambient temperature ranges support a wide variety of operational conditions with AC 60Hz valves performing from -4deg;F to 104deg;F and DC valves up to 158deg;F. The body material Buna-N seals and a tank port rating of 160 PSI ensure durability and long-term reliability.

MPN: DG4V-5-2A-M-EK6-20

Supplier Part Number: 639393
