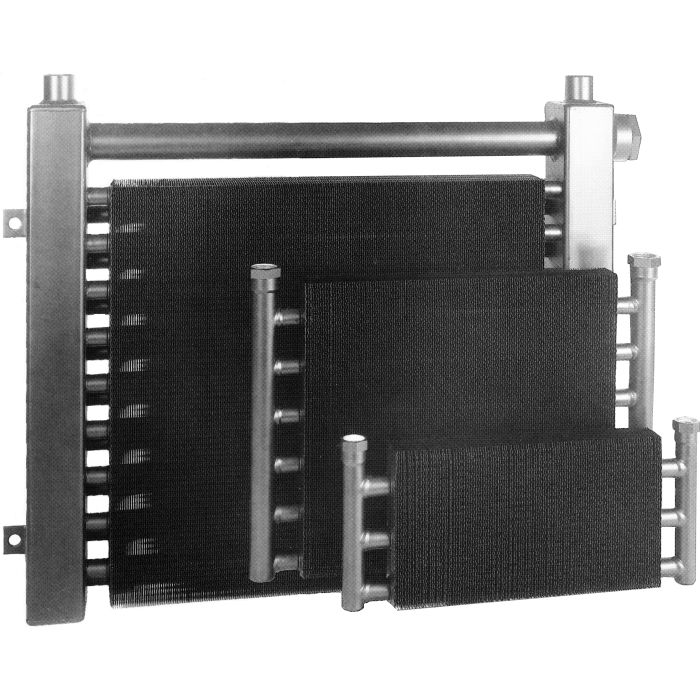

DH & DHR Series Air Cooled Mobile Heat Exchangers, Up To 300 PSI

Description & Features

Features	High performance oil turbulators. Lightweight. Low cost. Optional internal by-pass valves eliminate piping and reduce costs. Heat removal to 175,000 BTU/Hr. Oil flows up to 150 GPM. NPT ports are standard (SAE Straight Thread ports are optional).
Materials	Copper tubes. Aluminum or steel fins. Aluminum turbulators. Copper manifolds and brass connections (models DH-051 - DH-447), Steel manifolds and steel connections (models DH-513 - DH670).
Maximum Operating Temperature	350°F.
Pressure Rating	300 PSI Operating. 300 PSI Test.

Products

Model Number	Bypass Spring	A	B	C	D	E	Ports	G	Qty Mtg Kits	Face Area	Price	Action
DHR-249-1-1-30 DH & DHR Series Heat Exchanger	30	18	19.75	18.73	24	22.88	3/4 NPT	1.12	6	2.47

Product Questions & Answers (1)

Question by: Phil B on Apr 9, 2025, 5:36 PM

Hey, I'm looking at this heat exchanger for a hydraulic system on a piece of mobile equipment. How hot can the oil get before I start running into trouble?

Answer by: Customer Support on Apr 11, 2025, 1:31 PM

Maximum operating temperature is 350°F. You'll want to keep it below that to ensure optimal performance and prevent damage.
