Din-Fdin Swivel Branch Tee Com

Description & Features

This steel Din-Fdin Swivel Branch Tee Com features three DIN tube ports. Two ports are male M14 X 1.5 with L08 size, and the third port is female M14 X 1.5 with L08 size.

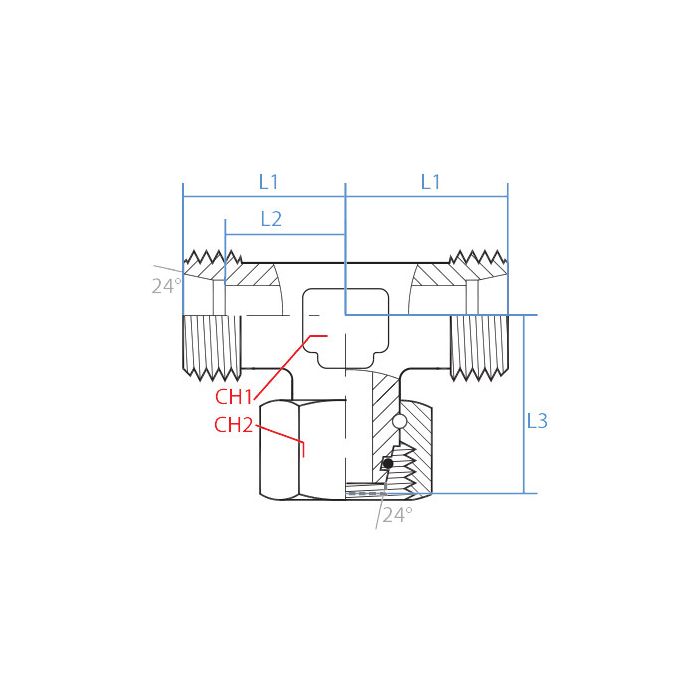

The Adaptall Ch1 width is 12mm, Ch2 width is 17mm. L1 length is 21mm, L2 length is 14mm and L3 length is 27.5mm.

SKU: 5387L-08C

Supplier Part Number (MPN): 5387L-08C

Specifications

CH1 Width 12mm	CH2 Width 17mm	L1 Length 21mm	L2 Length 14mm	L3 Length 27.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Side 3 Callout M14 X 1.5	Side 3 Gender F	Side 3 Size L08	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5387L-08C	Product Weight 0.13 lbs

Product Questions & Answers (1)

Question by: Marvin C on Feb 20, 2026, 9:19 AM

Hey, will this here tee fitting work with standard DIN fittings I already got on my machine?

Answer by: Customer Support on Feb 22, 2026, 6:22 AM

Yes, it's made to connect with other DIN tube fittings. Two of the ports are male M14 X 1.5, and the third is female M14 X 1.5, all L08 size.
