Din Union Tee

Description & Features

Constructed from steel, this equal-leg tee fitting provides three M36 x 2.0 male DIN tube connections, one on each port, in a symmetric configuration suited to hydraulic line branching applications. All three sides share the same L28 sizing, making it a straightforward choice when a single line must be split into two outlets of identical diameter and thread specification.

The Din Union Tee is an Adaptall product, designed to integrate within modular hydraulic assemblies where standardized DIN tube connections are required. With a channel width of 37mm and compact overall dimensions, it fits within space-conscious installations without sacrificing connection integrity. The uniform thread callout across all three ports simplifies assembly and reduces the need for additional adapters in matched-line configurations.

SKU: 5080L-28

Supplier Part Number (MPN): 5080L-28

Specifications

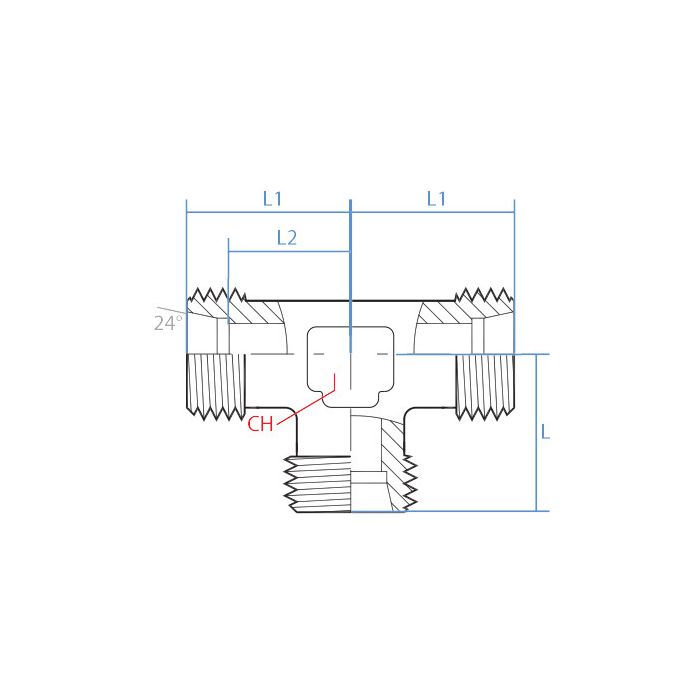

CH Width 37mm	L1 Length 38mm	L2 Length 30.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size L28	Side 2 Type Din Tube	Side 3 Callout M36 X 2.0	Side 3 Gender M	Side 3 Size L28	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080L-28	Product Weight 0.84 lbs

Product Questions & Answers (3)

Question by: Bobby G on May 22, 2025, 7:23 AM

Would this tee work okay for splitting a hydraulic line into two equal feeds?

Answer by: Customer Support on May 24, 2025, 6:39 AM

This tee fitting provides three identical M36 x 2.0 male DIN tube connections, so it's well-suited for splitting a single hydraulic line into two outlets with the same diameter and thread.

Question by: Kirk M on Apr 8, 2025, 5:41 PM

All three ports on this thing are the same size and thread, right? Just want to make sure I ain't gotta mix and match nothing before I order.

Answer by: Customer Support on Apr 10, 2025, 4:20 PM

Every port on this tee carries the same M36 x 2.0 male DIN tube connection at L28 sizing, so all three sides are identical. No mismatched threads, no adapters needed when you're running the same line spec across all three connections. Straightforward split from one line into two outlets of the same diameter.

Question by: Glen R on Jul 14, 2025, 12:49 PM

trying to split one hydraulic line into two, will this tee keep all three ends the same size?

Answer by: Customer Support on Jul 16, 2025, 6:11 AM

For a straight split with matching ends, it fits the bill. All three ports are equal leg with M36 x 2.0 male DIN tube connections, and each side is sized L28, so you are not mixing thread or tube sizes across the tee.
