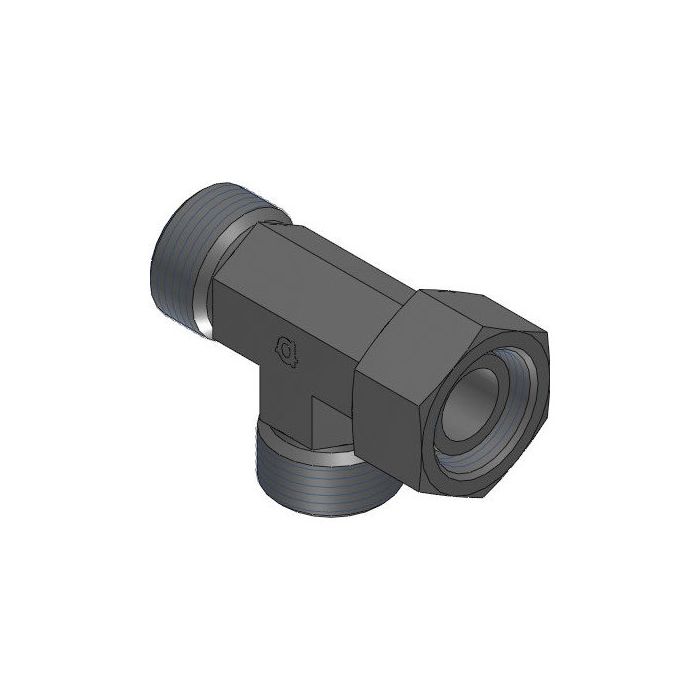

Din X F Din Swivel Run Tee

Ask A Question

Description & Features

This steel tee fitting features DIN tube connections, offering a reliable solution for hydraulic applications. The Din X F Din Swivel Run Tee provides a robust connection point with two M52 x 2.0 male ends and one M52 x 2.0 female end, all with L42 sizing.

The Adaptall fitting has a Ch1 width of 48mm, Ch2 width of 60mm, L1 length of 51mm, L2 length of 40mm, and L3 length of 56mm.

SKU: 5390L-42

Supplier Part Number (MPN): 5390L-42

Specifications

Brand
adapt-all
Connection Size 1
L42
Connection Size 3
L42
Connection Type
Female Metric, Female Metric Swivel
Connection Type 1
Female Metric DIN 24 deg Tube Swivel
Connection Type 2
Female Metric DIN 24 deg Tube
Connection Type 3
Female Metric DIN 24 deg Tube Swivel
Dimension Standards
DIN 2353
Dimensions
107 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Material
Steel
Material Construction
Carbon Steel
Series
5390 Series
Thread Size
M52x2

Product Questions & Answers (3)

Question by: Phil C on Mar 20, 2026, 9:23 AM
trying to replace a tee on a DIN tube setup, are all three ends on this one M52 x 2.0 and L42?
Answer by: Customer Support on Mar 21, 2026, 11:55 AM
All three ports are DIN tube connections sized L42 with an M52 x 2.0 thread callout. Two ends are male and the third end is female.
Question by: Terry H on Nov 15, 2025, 4:23 PM
Both run ends on this thing are male M52 x 2.0 DIN tube, and the branch is female M52 x 2.0 DIN tube, that right?
Answer by: Customer Support on Nov 16, 2025, 5:38 PM
that's correct. The two run ends are both male M52 x 2.0 DIN tube connections sized at L42, and the branch port is a female M52 x 2.0 DIN tube, also L42. All three sides share the same thread callout and sizing, so the fitting is consistent across the board.
Question by: Joyce M on Dec 13, 2025, 9:21 AM
What kind of material is this tee made from?
Answer by: Customer Support on Dec 14, 2025, 2:28 PM
This tee fitting is made from steel, offering a robust connection point for hydraulic applications.
