Din X Male Bspt Complete

Description & Features

This straight Adaptall fitting features a DIN tube connection on one side and a male Bspt threaded connection on the other. The DIN side has a M12 x 1.0 callout and LL08 size, while the Bspt side features a R 1/8 - 28 callout and 1/8" size. This Din X Male Bspt Complete adapter is constructed from steel for durability.

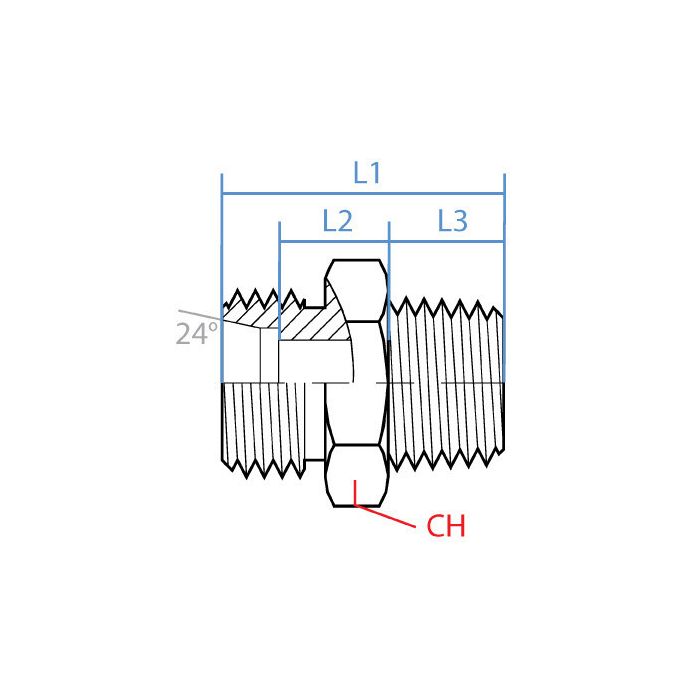

The Adaptall fitting has a 12mm wrench flat and several key dimensions: L1 length of 22mm, L2 length of 8.5mm, and L3 length of 8mm.

SKU: 5011LL-08-02C

Supplier Part Number (MPN): 5011LL-08-02C

Specifications

CH Width 12mm	L1 Length 22mm	L2 Length 8.5mm	L3 Length 8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.0	Side 1 Gender M	Side 1 Size LL08	Side 1 Type Din Tube	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5011LL-08-02C	Product Weight 0.04 lbs

Product Questions & Answers (1)

Question by: Dwight M on Mar 9, 2026, 9:44 AM

What size wrench you gonna need to torque this fitting down proper?

Answer by: Customer Support on Mar 10, 2026, 9:59 PM

A 12mm wrench flat is what you're working with on this one. That's a pretty snug size, so make sure you've got the right tool on hand before you start wrenching it in. Nothing worse than getting halfway through a job and realizing your wrench set ain't got what you need.
