Din X Male Nptt

Ask A Question

Description & Features

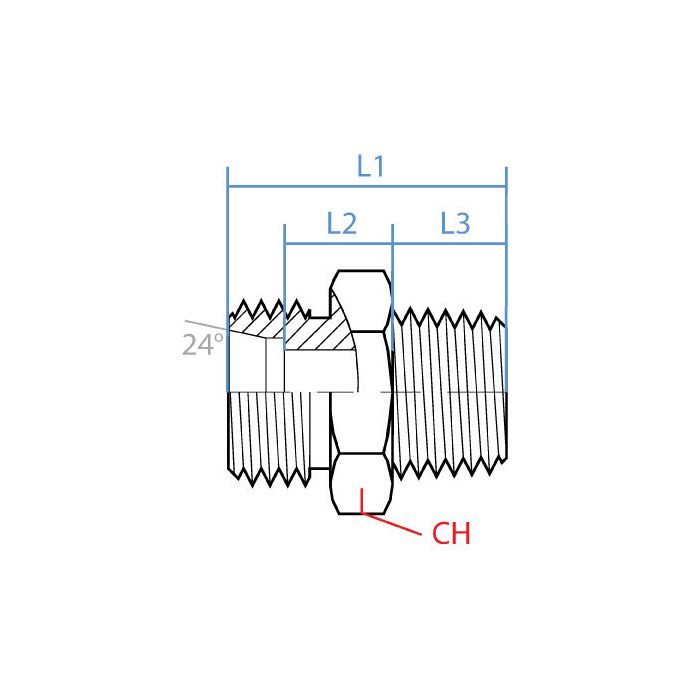

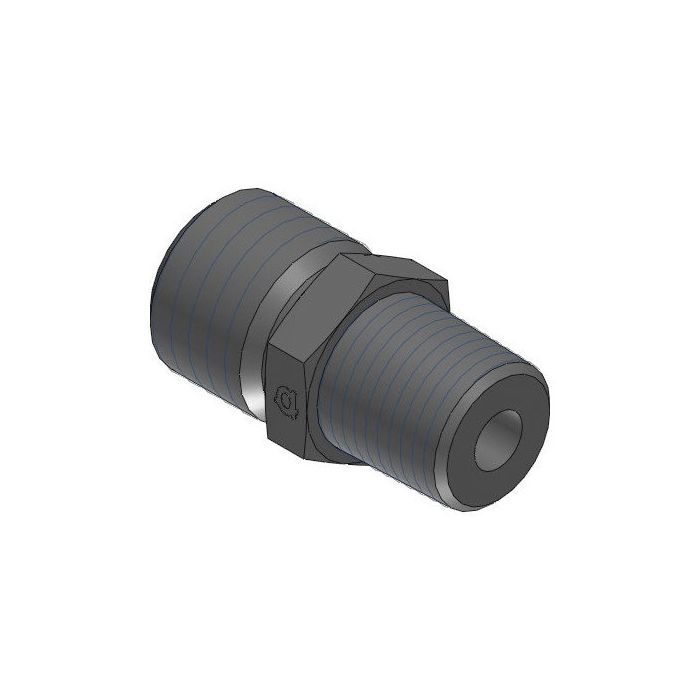

A straight steel adapter connecting an M14 x 1.5 DIN tube fitting on one end to a 1/8"-27 NPTF male thread on the other, the Din X Male Nptt is designed for use where DIN metric tube connections must interface with NPT-threaded ports in hydraulic systems. The straight configuration keeps the connection compact and in-line.

Manufactured by Adaptall, this adapter is constructed from steel, making it suitable for the pressure demands typical of hydraulic circuit connections. The male NPTF thread on the NPT side provides a pressure-tight mechanical seal without requiring additional sealant, while the L08 DIN tube side accommodates standard metric tube fittings at the M14 x 1.5 thread specification.

SKU: 5007L-08-02

Supplier Part Number (MPN): 5007L-08-02

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
1/8 in
Connection Type
Male Metric, MNPT
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN 2353, ISO 8434-1
Dimensions
26 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
5007 Series
Thread Size
M14x1.5 x 1/8-27

Product Questions & Answers (1)

Question by: Debbie H on Mar 27, 2026, 7:35 PM
Hey, will this here fitting work to adapt a DIN tube to a regular NPT pipe thread?
Answer by: Customer Support on Mar 28, 2026, 9:01 PM
This straight adapter connects a M14 x 1.5 DIN tube fitting to a 1/8"-27 NPTF male thread, allowing DIN metric tube connections to interface with NPT-threaded ports in hydraulic systems.
