Din X Mbspp Adj Branch Tee

Description & Features

Constructed in steel, this adjustable branch tee provides a DIN tube connection on two ports (M12 x 1.5 male, L06 size) and a G 1/8-28 male BSPP connection on the branch port. The Din X Mbspp Adj Branch Tee is suited for hydraulic circuits where a metric DIN tube line must be branched off to a BSPP-ported component or accessory.

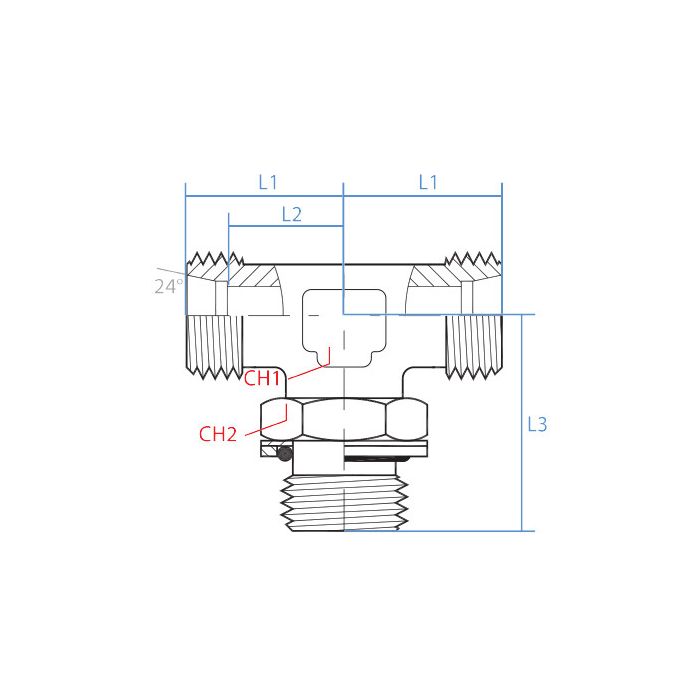

The adjustable branch design allows the side port to be repositioned to the required orientation before locking, which simplifies installation in tight or angled configurations. Key dimensional references include a Ch1 width of 12mm, Ch2 width of 14mm, and an L3 length of 27mm. Manufactured by Adaptall, this fitting is part of their interchangeable adapter system, compatible with a wide range of Adaptall bodies and assemblies.

SKU: 5159L-06-06-02

Supplier Part Number (MPN): 5159L-06-06-02

Specifications

CH1 Width 12mm	CH2 Width 14mm	L1 Length 19mm	L2 Length 12mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Side 3 Callout G 1/8 - 28	Side 3 Gender M	Side 3 Size 1/8"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5159L-06-06-02	Product Weight 0.09 lbs

Product Questions & Answers (3)

Question by: Joyce R on Jun 28, 2025, 5:44 PM

Will this tee fitting work with standard DIN fittings, or do I need something special?

Answer by: Customer Support on Jun 29, 2025, 8:31 PM

This branch tee is constructed with DIN tube connections on two ports, so it's made to work directly with standard DIN fittings of the correct size (M12 x 1.5, L06 size). You shouldn't need any special adapters for those connections.

Question by: Curt S on Feb 26, 2026, 5:31 PM

i’ve got two M12 x 1.5 DIN tube lines and need to tee off to a little G 1/8-28 port, is that what this fitting is set up for

Answer by: Customer Support on Feb 28, 2026, 6:39 AM

For branching a metric DIN tube run into a BSPP-ported accessory, this tee matches that layout. It has M12 x 1.5 male DIN tube connections on two ports (L06 size) and a G 1/8-28 male BSPP connection on the branch.

Question by: Earl C on Jan 3, 2026, 11:33 AM

Got a DIN tube line I need to branch off to a small BSPP gauge port, this fitting set up for that kind of hookup?

Answer by: Customer Support on Jan 4, 2026, 5:08 PM

That's exactly what this one's built for. You've got two DIN tube ports running M12 x 1.5 male threads in L06 size, and the branch port is a G 1/8-28 male BSPP connection. So if your gauge, valve, or sensor is threaded for 1/8" BSPP female, this tee bridges that DIN line right over to it without any awkward adapter stacking.
