Din X Mbspp Adj Run Tee

Description & Features

Constructed from steel, this Adaptall run tee features DIN tube connections on two ports and a BSPP connection on the third. The DIN tube ports feature M30 x 2.0 callouts and S20 sizing. The BSPP port measures 3/4".

This Din X Mbspp Adj Run Tee offers a versatile solution for connecting hydraulic lines with differing connection types.

SKU: 5158S-20-20-12

Supplier Part Number (MPN): 5158S-20-20-12

Specifications

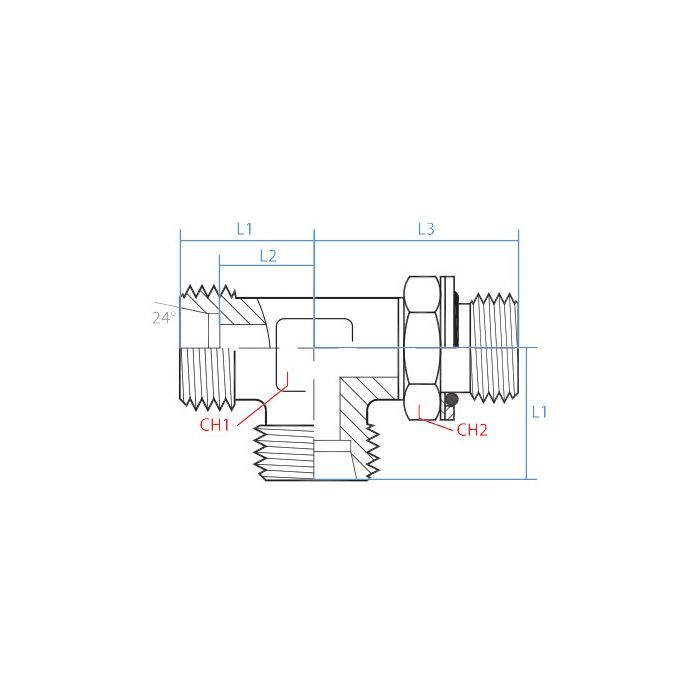

CH1 Width 27mm	CH2 Width 36mm	L1 Length 37mm	L2 Length 26.5mm	L3 Length 47mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size S20	Side 2 Type Din Tube	Side 3 Callout G 3/4 - 14	Side 3 Gender M	Side 3 Size 3/4"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5158S-20-20-12	Product Weight 0.80 lbs

Product Questions & Answers (3)

Question by: Harold D on Apr 27, 2025, 12:03 PM

Is this steel fitting gonna hold up okay outside?

Answer by: Customer Support on Apr 28, 2025, 5:47 PM

Constructed from steel, this run tee should provide good durability, but consider environmental factors and potential corrosion in harsh conditions.

Question by: Gene H on Mar 14, 2026, 11:42 AM

Got a setup where two DIN tube lines are running inline and I need to branch off to a BSPP port, this tee gonna work for that kind of layout?

Answer by: Customer Support on Mar 15, 2026, 6:25 PM

That's exactly the kind of application this fitting handles. The run goes through the two DIN tube ports, both sized at S20 with M30 x 2.0 threads, and the branch port is a 3/4" male BSPP with a G 3/4-14 callout. So if your inline DIN lines are S20 and your branch connection is 3/4" BSPP, the geometry and thread specs line up for that split configuration.

Question by: Larry C on Apr 5, 2026, 7:52 PM

trying to tie two S20 DIN tube ends into a 3/4 BSPP port, is that what this tee is set up for?

Answer by: Customer Support on Apr 7, 2026, 7:18 AM

Built for mixed connection types, it has two male DIN tube ports in S20 with M30 x 2.0 threads, plus a third male BSPP port sized 3/4 inch with a G 3/4 - 14 callout.
